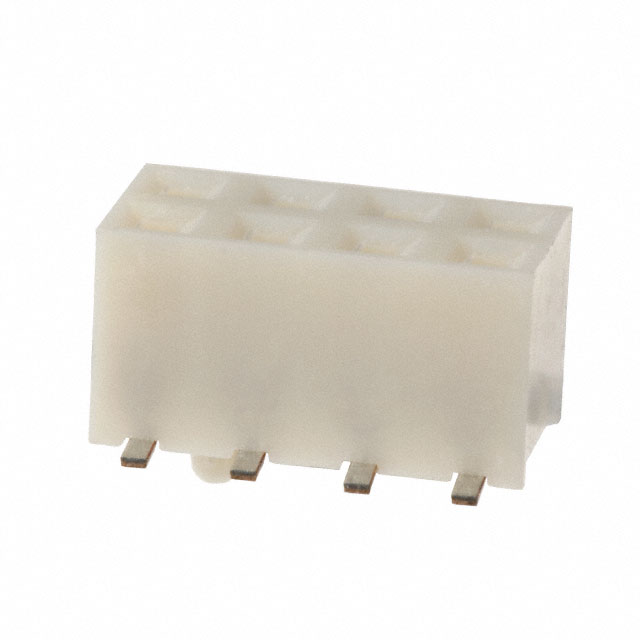

A3-8DA-2SV(92)

Active

Hirose Electric USA, Inc.

CONN RCPT 8POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 8POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	A3-8DA-2SV(92)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Brown
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Number of Positions Loaded	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Rows	Number of Positions	Mounting Type	Insulation Height [z]	Insulation Height [z]	Insulation Material	Insulation Color	Connector Type	Contact Finish - Post	Contact Type	Style	Termination
Hirose Electric USA, Inc. A3-8DA-2SV(92)	All	General Purpose Telecommunications	85 °C	-55 °C	0.079 in	2 mm	0.203 Ám	8 Áin	5.1 mm 6 mm	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	Square	Gold	1 çm	39.4 çin	Push-Pull	2	8	Surface Mount	0.165 in	4.2 mm	Polyphenylene Sulfide (PPS)	Brown	Receptacle	Tin	Female Socket	Board to Board Cable	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.64

General part information

8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
