05588.R5.02

Active

Prysmian Group

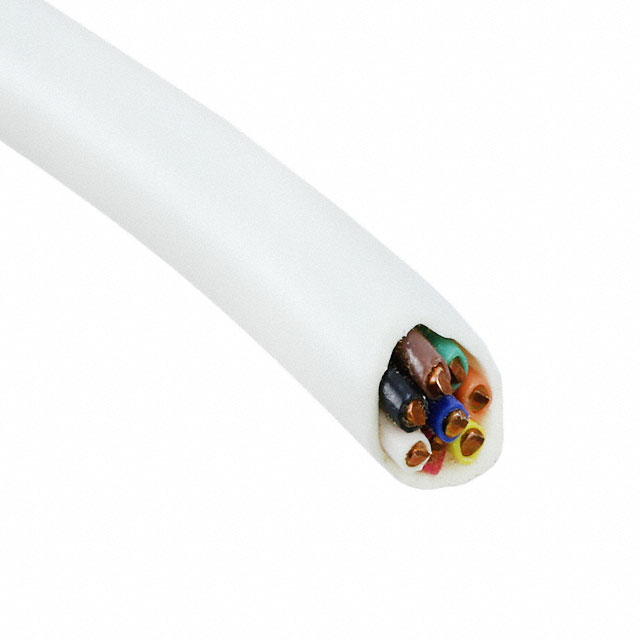

CABLE 8COND 18AWG WHITE

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 8COND 18AWG WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	05588.R5.02

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Length	3000 "
Length	76.2 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Thermostat
Voltage	150 V
Wire Gauge	18 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Length [x]	Length [x]	Jacket (Insulation) Material	Cable Type	Number of Conductors	Wire Gauge	Conductor Material	Length	Length	Jacket Color
Prysmian Group 05588.R5.02	Thermostat	-20 C	60 °C	150 V	0.225 "	5.72 mm	Poly-Vinyl Chloride (PVC)	0.203 mm	0.008 in	Solid	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Multi-Conductor	8	18 AWG	Copper Bare	3000 "	76.2 m
Prysmian Group 05588.15.08	Thermostat	-20 C	60 °C	150 V	0.225 "	5.72 mm	Poly-Vinyl Chloride (PVC)	0.203 mm	0.008 in	Solid			Poly-Vinyl Chloride (PVC)	Multi-Conductor	8	18 AWG	Copper Bare	3000 "	76.2 m	Brown

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable White 18 AWG 250.0' (76.2m)

Technical documentation and resources

No documents available
