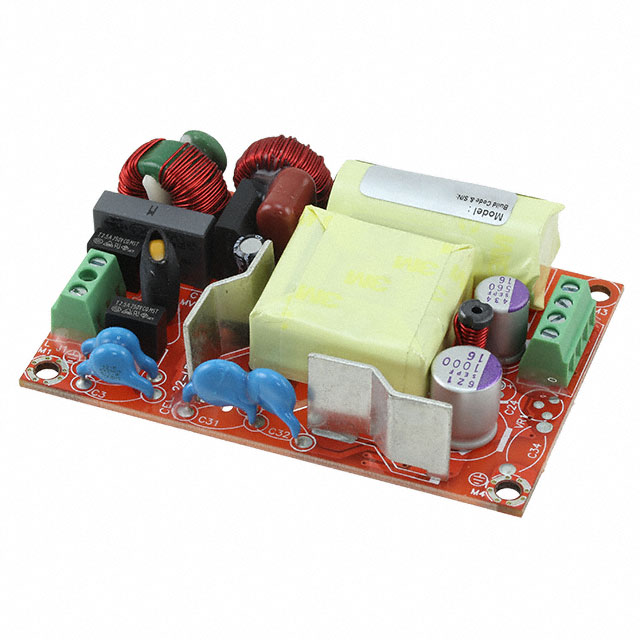

ABC41-1T15L

EOS Power India Private Ltd

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

Search across all available documentation for this part.

ABC41-1T15L

EOS Power India Private Ltd

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABC41-1T15L

Applications	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	2.67 A
Efficiency	85 %
Features	Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	40 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	24.7 mm
Size / Dimension [z]	0.97 in
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

ABC41 Series

Part	Number of Outputs	Voltage - Output 1	Applications	Line Regulation	Load Regulation	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Type	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Weight	Weight	Voltage - Isolation	Current - Output 1
EOS Power India Private Ltd ABC41-1024P-2	1	24 V	ITE (Commercial)	0.5 %	1 %	4-DIP Module	40 W	1.67 A	85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Through Hole
EOS Power India Private Ltd ABC41-1012P	1	12 V	ITE (Commercial)	0.5 %	1 %	4-DIP Module	40 W	3.33 A	85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Through Hole	100.24 g	0.221 lb
EOS Power India Private Ltd ABC41-1T48L	1	48 V	ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	830 mA
EOS Power India Private Ltd ABC41-1048L	1	48 V	ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	830 mA
EOS Power India Private Ltd ABC41-1015L	1	15 V	ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	2.67 A
EOS Power India Private Ltd ABC41-1T15L	1	15 V	ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	2.67 A
EOS Power India Private Ltd ABC41-1005P-2	1	5 V	ITE (Commercial)	0.5 %	1 %	4-DIP Module	40 W	5 A	85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Through Hole
EOS Power India Private Ltd ABC41-1030P-2	1	30 V	ITE (Commercial)	0.5 %	1 %	4-DIP Module	40 W	1.33 A	85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Through Hole
EOS Power India Private Ltd ABC41-1030L	1	30 V	ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	1.33 A
EOS Power India Private Ltd ABC41-1058L	1		ITE (Commercial)				40 W		85 %	Open Frame	CE cUL NEMKO UL	Universal Input	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	Chassis Mount			4000 V	690 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 25.44

Description

General part information

ABC41 Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
