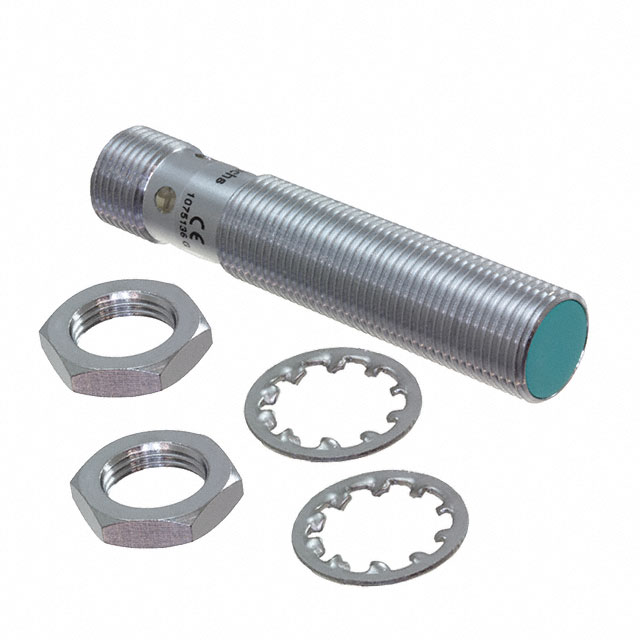

NEB8-12GM50-E2-V1 - NEB8-12GM50-E2-V1

NEB8-12GM50-E2-V1

Active
PEPPERL+FUCHS

INDUCTIVE SEN 8.8MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

NEB8-12GM50-E2-V1 - NEB8-12GM50-E2-V1

NEB8-12GM50-E2-V1

Active
PEPPERL+FUCHS

INDUCTIVE SEN 8.8MM PNP

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationNEB8-12GM50-E2-V1
Indicator [custom]LED
Ingress ProtectionIP67
Material - BodyBrass
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Output TypePNP-NO, 3-Wire
Package / CaseCylinder, Threaded - M12
Sensing Distance0.315 in
Sensing Distance8 mm
Sensor TypeInductive
ShieldingUnshielded
Termination StyleConnector
Voltage - Supply [Max]30 VDC
Voltage - Supply [Min]10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 140.50
10$ 127.32
25$ 122.93
NewarkEach 1$ 205.62
5$ 175.35
10$ 168.23
25$ 160.22
50$ 146.87
100$ 126.40

Description

General part information

NEB8-12 Series

INDUCTIVE SEN 8.8MM PNP

Documents

Technical documentation and resources

No documents available
