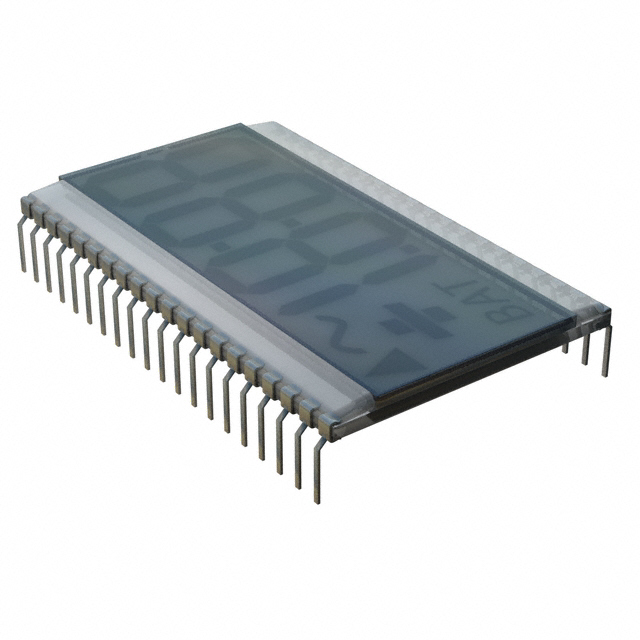

VI-322-DP-RC-S
ActiveVaritronix
LCD MOD 3.5DIG 3.5 X 1 REFLECTIV
Deep-Dive with AI
Search across all available documentation for this part.
VI-322-DP-RC-S
ActiveVaritronix
LCD MOD 3.5DIG 3.5 X 1 REFLECTIV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VI-322-DP-RC-S |
|---|---|
| Character Format | 7-Segment |
| Character Size [y] | 7.1 mm |
| Character Size [z] | 12.7 mm |
| Display Format [x] | 3.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 3.5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 45.8 mm |
| Viewing Area [y] | 17.78 mm |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.77 | |
| 10 | $ 4.88 | |||
| 100 | $ 3.93 | |||
| 500 | $ 3.48 | |||
| 1000 | $ 3.28 | |||
Description
General part information
VI-322 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic 50.80mm x 30.48mm x 2.80mm
