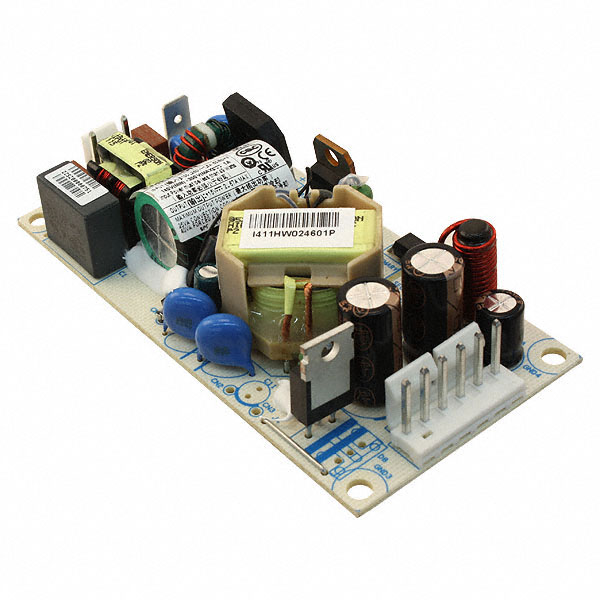

NPS22-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 5V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPS22-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 5V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPS22-M |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Current - Output 1 | 8 A |
| Efficiency | 87 % |
| Features | Remote Sense, Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 25 W, 40 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 21.8 mm |
| Size / Dimension [z] | 1 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.31 | |
| 5 | $ 28.45 | |||
| 10 | $ 27.59 | |||
| 40 | $ 25.86 | |||
| 80 | $ 25.00 | |||
| 280 | $ 24.14 | |||
Description
General part information
NPS22 Series
Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
