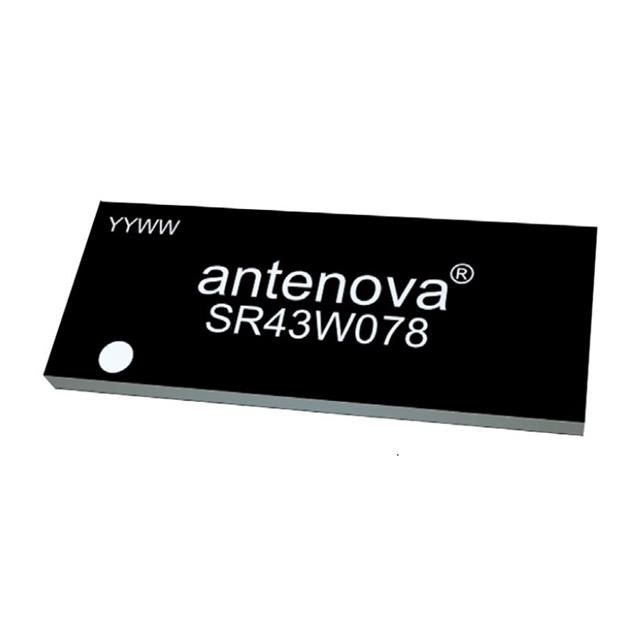

SR43W078
ActiveAntenova
BILLI SURFACE MOUNT WI-FI6E ANTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR43W078
ActiveAntenova
BILLI SURFACE MOUNT WI-FI6E ANTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR43W078 |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, 802.11a/b/g/j/-c/ax |
| Frequency (Center/Band) | 2.45 GHz, 5.4 GHz, 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.5 GHz, 5.9 GHz, 7.125 GHz |
| Frequency Range [Min] | 2.4 GHz, 5.925 GHz, 4.9 GHz |
| Gain | 4.7 dBi, 2.9 dBi, 4.9 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| Return Loss | -7.5 dB, -10 dB |
| RF Family/Standard | WiFi |
| VSWR | 2.1, 2.45 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.50 | |
| 10 | $ 2.24 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.69 | |||
| 500 | $ 1.48 | |||
| Digi-Reel® | 1 | $ 2.50 | ||
| 10 | $ 2.24 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.69 | |||
| 500 | $ 1.48 | |||
| Tape & Reel (TR) | 1000 | $ 1.23 | ||
| 2000 | $ 1.14 | |||
| 3000 | $ 1.11 | |||
Description
General part information
SR43W Series
RF ANTENNA 802.11a/b/g/j/-c/ax, Wi-Fi Chip Surface Mount
