801-83-027-65-001101

Active

PRECI-DIP SA

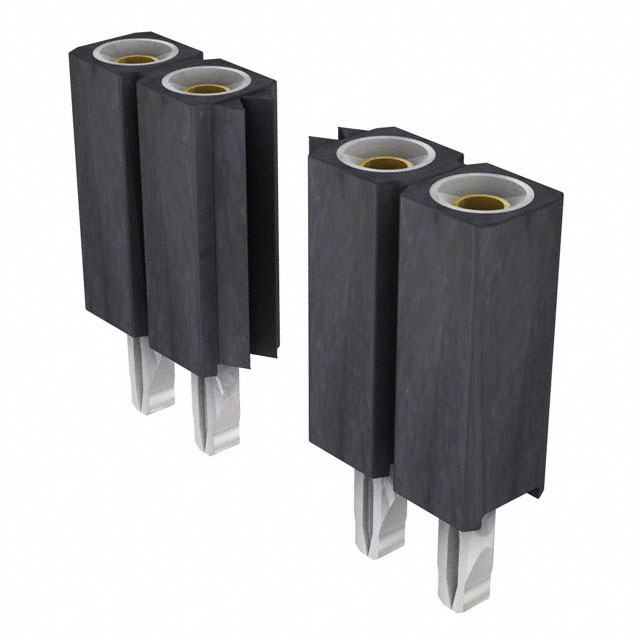

CONN SOCKET 27POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

801-83-027-65-001101

Active

PRECI-DIP SA

CONN SOCKET 27POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	801-83-027-65-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder, Press-Fit

801-83 Series

...

Part	Material Flammability Rating	Features	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Insulation Color	Contact Finish - Mating	Contact Type	Insulation Material	Contact Material	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Insulation Height	Insulation Height
PRECI-DIP SA 801-83-009-30-480191	UL94 V-0	Pick and Place	Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	9	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.165 in	4.2 mm	Socket	29.5 Áin	0.75 Ám	Surface Mount	Solder	1
PRECI-DIP SA 801-83-033-10-143101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	33	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Kinked Pin Solder	1	0.118 in	3 mm
PRECI-DIP SA 801-83-023-65-001101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	23	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Press-Fit Solder	1		2.79 mm	0.11 in
PRECI-DIP SA 801-83-012-10-004101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	12	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Solder	1	0.114 in	2.9 mm
PRECI-DIP SA 801-83-043-10-004101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	43	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Solder	1	0.114 in	2.9 mm
PRECI-DIP SA 801-83-027-65-001101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	27	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Press-Fit Solder	1		2.79 mm	0.11 in
PRECI-DIP SA 801-83-037-20-002101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	37	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper			Socket	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	1		3.2 mm	0.126 in	0.1 in	2.54 mm
PRECI-DIP SA 801-83-026-10-268101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	26	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper			Socket	29.5 Áin	0.75 Ám	Through Hole	Solder	1	0.108 in	2.75 mm		0.116 in	2.95 mm
PRECI-DIP SA 801-83-038-65-410101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	38	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Press-Fit Solder	1		2.79 mm	0.11 in
PRECI-DIP SA 801-83-049-10-143101	UL94 V-0		Circular	0.1 in	2.54 mm	Push-Pull	-55 °C	125 °C	3 A	Tin	All	49	Black	Gold	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.276 in	7 mm	Socket	29.5 Áin	0.75 Ám	Through Hole	Kinked Pin Solder	1	0.118 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 6.60

Description

General part information

801-83 Series

27 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
