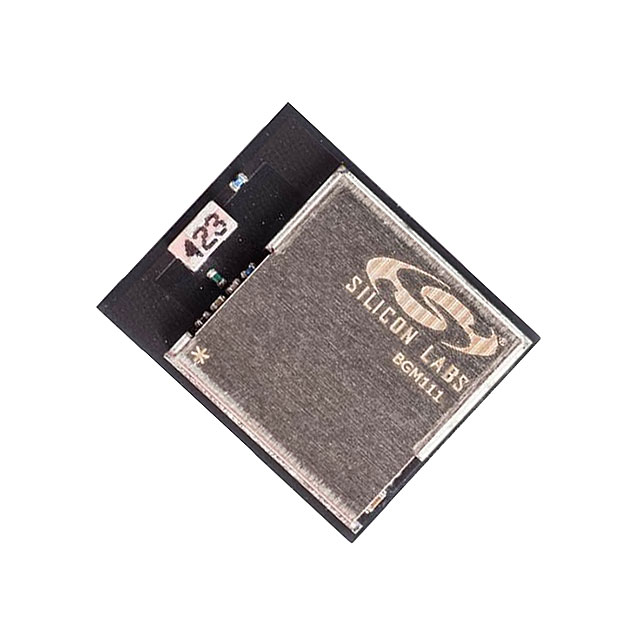

BGM111A256V21R
ActiveSilicon Labs
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
BGM111A256V21R
ActiveSilicon Labs
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BGM111A256V21R |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 8.7 mA |
| Current - Transmitting | 8.2 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 32 kB, 256 kB |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -92 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | EFR32BG |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.90 | |
| 10 | $ 10.91 | |||
| 25 | $ 9.92 | |||
| 100 | $ 8.93 | |||
| 250 | $ 8.18 | |||
| 500 | $ 7.44 | |||
| Digi-Reel® | 1 | $ 11.90 | ||
| 10 | $ 10.91 | |||
| 25 | $ 9.92 | |||
| 100 | $ 8.93 | |||
| 250 | $ 8.18 | |||
| 500 | $ 7.44 | |||
| Tape & Reel (TR) | 1000 | $ 6.69 | ||
Description
General part information
BGM111 Series
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
