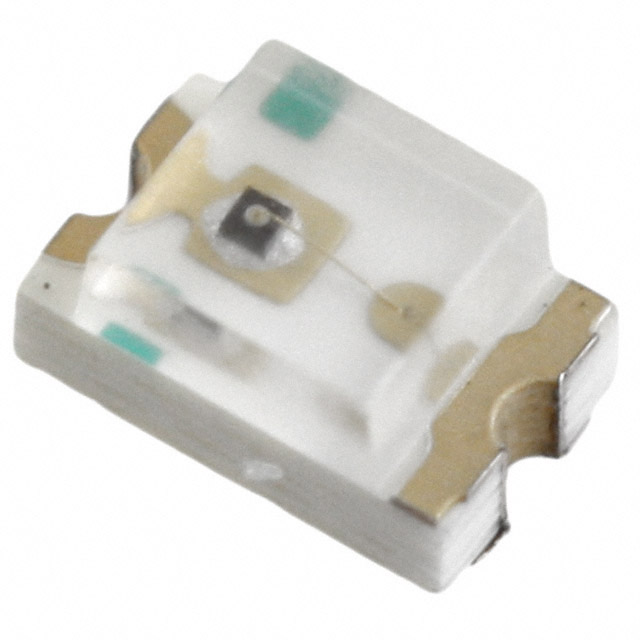

SML-LXT0805SYW-TR

Active

Lumex Opto/Components Inc.

LED YELLOW DIFFUSED SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXT0805SYW-TR

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.8 mm
Lens Color	White
Lens Size [x]	1.3 mm
Lens Size [y]	1.25 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	60 mcd
Mounting Type	Surface Mount
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.25 mm
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	590 nm

SML-LXT0805 Series

Part	Lens Style	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Configuration	Viewing Angle	Color	Lens Color	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Package / Case	Millicandela Rating	Wavelength - Peak	Mounting Type	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SML-LXT0805IW-TR	Rectangle with Flat Top	2 V	2 mm	1.25 mm	Standard	140 °	Red	White	1.3 mm	1.25 mm	0.8 mm	0805	11 mcd	635 nm	Surface Mount	Diffused	20 mA
Lumex Opto/Components Inc. SML-LXT0805GW-TR	Rectangle with Flat Top	2 V	2 mm	1.25 mm	Standard	140 °	Green	White	1.3 mm	1.25 mm	0.8 mm	0805	11 mcd	565 nm	Surface Mount	Diffused	20 mA
Lumex Opto/Components Inc. SML-LXT0805YW-TR	Rectangle with Flat Top	2.1 V	2 mm	1.25 mm	Standard	140 °	Yellow	White	1.3 mm	1.25 mm	0.8 mm	0805	10 mcd	585 nm	Surface Mount	Diffused	20 mA
Lumex Opto/Components Inc. SML-LXT0805SYW-TR	Rectangle with Flat Top	2.1 V	2 mm	1.25 mm	Standard	140 °	Yellow	White	1.3 mm	1.25 mm	0.8 mm	0805	60 mcd	590 nm	Surface Mount	Diffused	20 mA
Lumex Opto/Components Inc. SML-LXT0805SISUGC	Rectangle with Flat Top		1.25 mm	2 mm	Independent	120 °	Green Red	Colorless	1.2 mm	1.25 mm	0.4 mm	0805	50 mcd 250 mcd	574 nm 645 nm	Surface Mount	Clear	20 mA 20 mA	2.1 V	1.95 V
Lumex Opto/Components Inc. SML-LXT0805SUGW-TR	Rectangle with Flat Top	2.2 V	2 mm	1.25 mm	Independent	140 °	Green	White	1.4 mm	1.24 mm		0805	40 mcd		Surface Mount	Diffused	20 mA			1.25 mm
Lumex Opto/Components Inc. SML-LXT0805SBW-TR	Rectangle with Flat Top	4 V	2 mm	1.25 mm	Standard	140 °	Blue	White	1.3 mm	1.25 mm	0.8 mm	0805	11 mcd	430 nm	Surface Mount	Diffused	20 mA
Lumex Opto/Components Inc. SML-LXT0805SIUGUBW	Rectangle with Flat Top	2 V 3.3 V 3.3 V	2 mm	1.25 mm		140 °	Blue Green Red	White	1.4 mm	1.3 mm		0805			Surface Mount	Diffused				1.25 mm	165 mcd	104 mcd	236 mcd	20 mA	20 mA	20 mA	520 nm	632 nm	468 nm
