H3AAH-4036M

Active

Assmann WSW Components

IDC CBL - HHSC40H/AE40M/HHSC40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC40H/AE40M/HHSC40H

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Number of Positions	Length [x]	Length [x]	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Length	Length	Length
Assmann WSW Components H3AAH-4018M	IDC	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	457.2 mm	1.5 ft	Multiple Ribbon	Gold	15 µin	0.38 µm	2	Unshielded
Assmann WSW Components H3AAH-4006M	IDC	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40			Multiple Ribbon	Gold	15 µin	0.38 µm	2	Unshielded	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AAH-4018G	IDC	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	457.2 mm	1.5 ft		Gold	15 µin	0.38 µm	2	Unshielded
Assmann WSW Components H3AAH-4036M	IDC	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	914.4 mm	3 ft	Multiple Ribbon	Gold	15 µin	0.38 µm	2	Unshielded
Assmann WSW Components H3AAH-4006G	IDC	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40				Gold	15 µin	0.38 µm	2	Unshielded	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

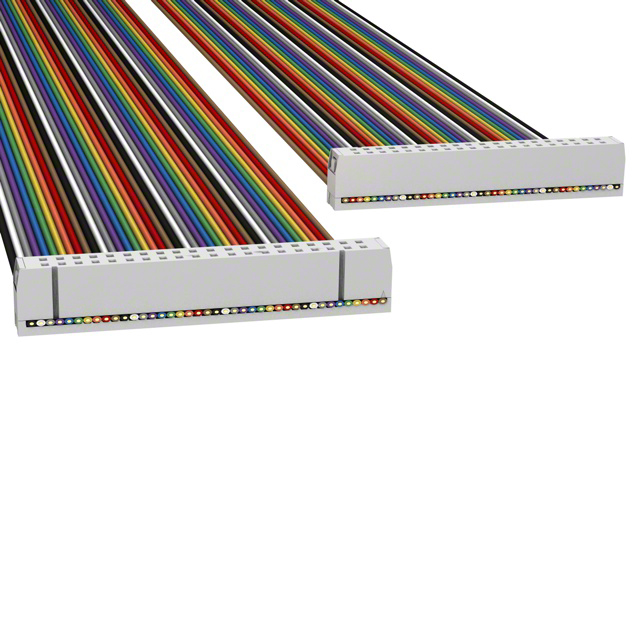

40 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
