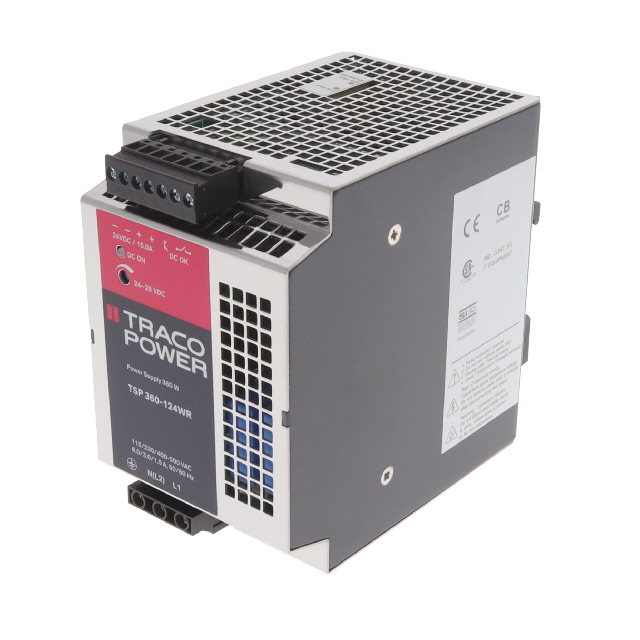

TSP 360-124 WR

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 360W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 360W

Technical Specifications

Parameters and characteristics for this part

Specification	TSP 360-124 WR

AC Voltage - Input [Max]	132 VAC, 550 VAC
AC Voltage - Input [Min]	187 VAC, 85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, GS, cCSAus, CB
Current - Output (Max) [Max]	15 A
Efficiency	88 %
Features	Remote On/Off, Universal Input, IP20, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	360 W
Size / Dimension [x]	4.92 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Size / Dimension [z]	125 mm
Size / Dimension [z]	4.92 in
Voltage - Output 1	24 V

Part	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Applications	Features	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1
Traco Power TSP 360-124 WR	CB cCSAus CE GS	4.92 in	125 mm	125 mm	80 mm	4.92 in	3.15 in	-25 °C	70 °C	AC	15 A	360 W	88 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output IP20 Remote On/Off Universal Input	1	85 VAC 187 VAC	132 VAC 550 VAC	24 V
Traco Power TSP 360-148	CB CE cURus SIQ	4.92 in	125 mm	125 mm	80 mm	4.92 in	3.15 in	-25 °C	70 °C	AC	7.5 A	360 W	87 %	Industrial ITE (Commercial)	Adjustable Output IP20 Remote On/Off Universal Input	1	85 VAC 187 VAC	132 VAC 264 VAC	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 360W
