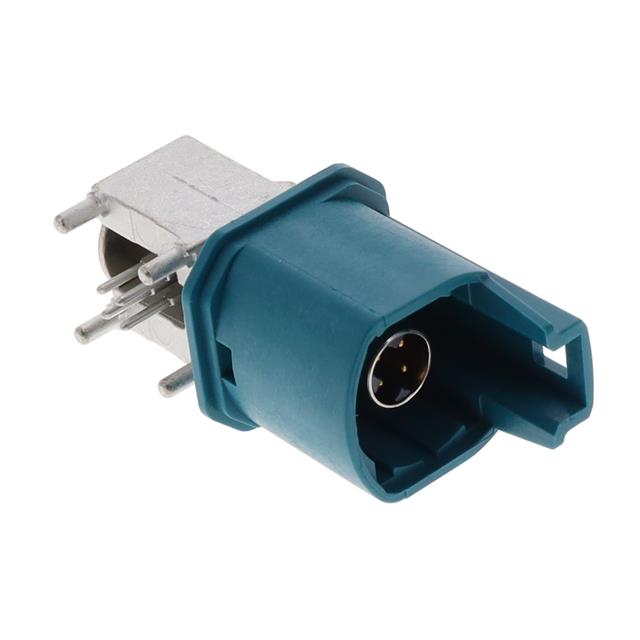

D4S24D-400A5-Z
ActiveRosenberger
CONN R/A PCB PLUG, SINGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D4S24D-400A5-Z
ActiveRosenberger
CONN R/A PCB PLUG, SINGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D4S24D-400A5-Z |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code Z |
| Frequency - Max [Max] | 2 GHz |
| Impedance | 100 Ohms |
| Ingress Protection | Waterproof |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 29.13 | |
| 10 | $ 25.51 | |||
| 25 | $ 24.41 | |||
| 50 | $ 23.62 | |||
| 100 | $ 22.83 | |||
| 250 | $ 21.57 | |||
Description
General part information
D4S24D Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
