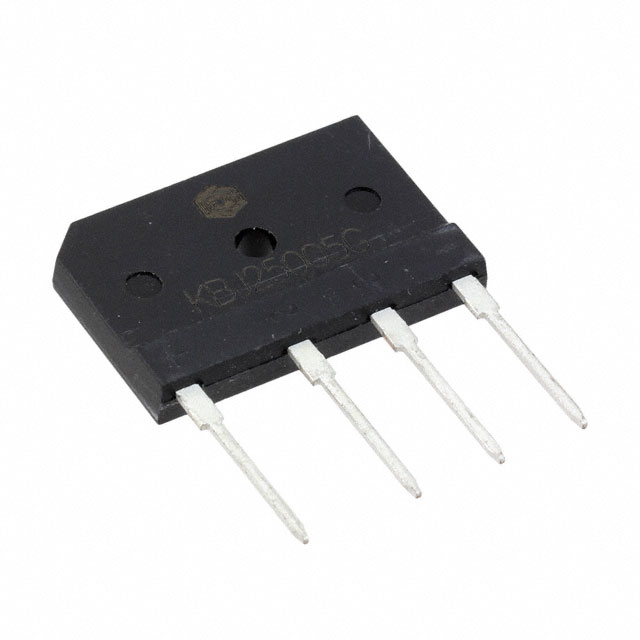

KBJ25005G

Active

GeneSiC Semiconductor

BRIDGE RECT 1PHASE 50V 25A KBJ

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

BRIDGE RECT 1PHASE 50V 25A KBJ

Technical Specifications

Parameters and characteristics for this part

Specification	KBJ25005G

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	KBJ, 4-SIP
Supplier Device Package	KBJ
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	50 V

Part	Current - Average Rectified (Io)	Diode Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]	Package / Case	Supplier Device Package	Mounting Type
GeneSiC Semiconductor KBJ25005G	25 A	Single Phase	1.05 V	10 µA	Standard	125 ¯C	-55 °C	50 V	4-SIP KBJ	KBJ	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.75

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole KBJ
