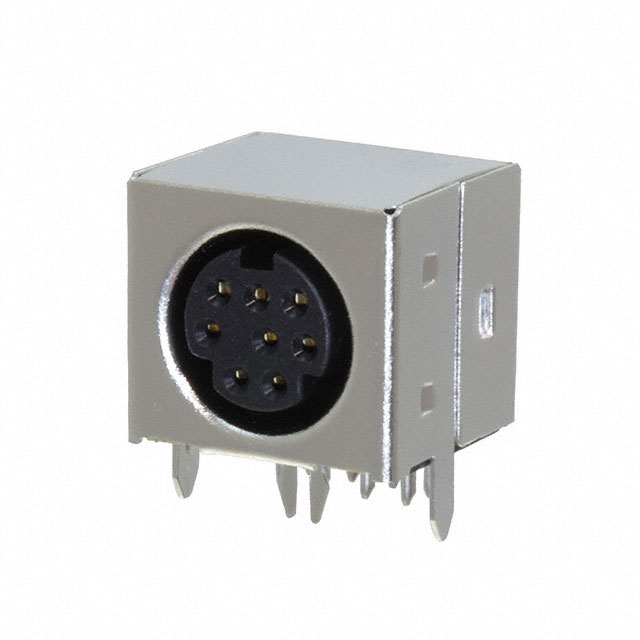

MDJ-008-FS

Active

Adam Tech

CONN JACK FMALE MINI DIN 8P SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN JACK FMALE MINI DIN 8P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MDJ-008-FS

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Primary Material	Fastening Type	Contact Material	Shell Finish	Color	Features	Contact Finish - Mating	Shell Material	Orientation	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Applications	Shell Size - Insert	Connector Type	Mounting Type	Shielding	Insert Material	Voltage Rating	Number of Positions
Adam Tech MDJ-008-FS	Metal	Push-Pull	Phosphor Bronze	Tin	Silver	Board Guide Board Lock	Gold	Copper Alloy	Keyed	Solder	70 °C	-25 °C	UL94 V-0	Audio Video	Mini DIN	Female Sockets Jack	Through Hole Right Angle	Shielded	Polybutylene Terephthalate (PBT) Glass Filled	12 V 100 VAC	8
