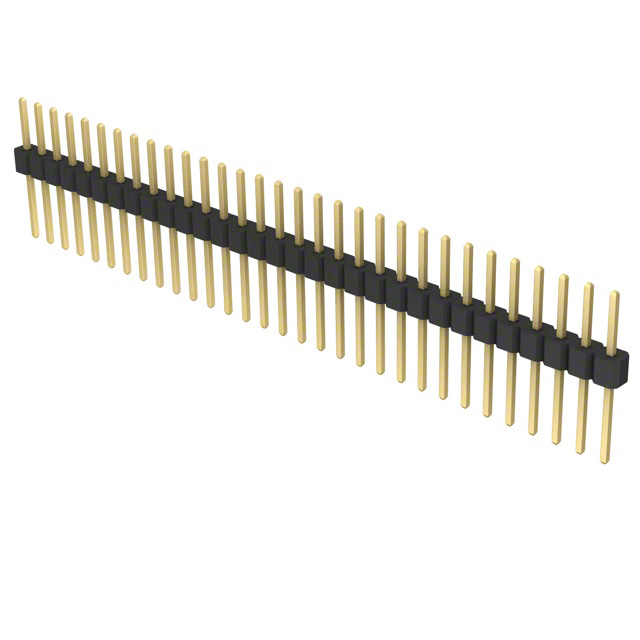

PRPC031SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 31POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC031SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 31POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC031SACN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.47 mm
Overall Contact Length	0.648 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC031 Series

Part	Style	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Insulation Material	Insulation Height [z]	Insulation Height [z]	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Termination	Fastening Type	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PRPC031SACN-RC	Board to Board Cable	Black	16.47 mm	0.648 in	Male Pin	31	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole	All	0.32 in	8.13 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0
Sullins Connector Solutions PRPC031SGAN-M71RC	Board to Board Cable	Black			Male Pin	31	0.318 "		Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole Right Angle	All	0.12 in	3.05 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0	8.08 mm
Sullins Connector Solutions PRPC031SAAN-RC	Board to Board Cable	Black	11.39 mm	0.448 in	Male Pin	31	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole	All	0.12 in	3.05 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0
Sullins Connector Solutions PRPC031SBBN-M71RC	Board to Board Cable	Black			Male Pin	31	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole Right Angle	All			Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0		0.22 in	5.58 mm
Sullins Connector Solutions PRPC031SFAN-RC	Board to Board Cable	Black	0.537 "		Male Pin	31	0.318 "		Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole	All	0.12 in	3.05 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0	8.08 mm			13.63 mm
Sullins Connector Solutions PRPC031DFBN-RC	Board to Board Cable	Black	16.17 mm	0.637 in	Male Pin	62	0.318 "		Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	2	Through Hole	All			Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0	8.08 mm	0.22 in	5.58 mm		2.54 mm	0.1 in
Sullins Connector Solutions PRPC031DABN-RC	Board to Board Cable	Black	14.18 mm	0.558 in	Male Pin	62	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	2	Through Hole	All			Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0		0.23 in	5.84 mm		2.54 mm	0.1 in
Sullins Connector Solutions PRPC031SBCN-M71RC	Board to Board Cable	Black			Male Pin	31	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole Right Angle	All	0.32 in	8.13 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0
Sullins Connector Solutions PRPC031SBAN-M71RC	Board to Board Cable	Black			Male Pin	31	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	0.098 in	2.5 mm	1	Through Hole Right Angle	All	0.12 in	3.05 mm	Flash	Solder	Push-Pull	3 A	Brass	Gold	Flash	Gold	Square	0.1 in	2.54 mm	Breakaway Header	-40 °C	105 ░C	Unshrouded	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.27
		10	$ 0.96
		100	$ 0.74
		500	$ 0.62
		1000	$ 0.58
		5000	$ 0.52

Description

General part information

PRPC031 Series

Connector Header Through Hole 31 position 0.100" (2.54mm)
