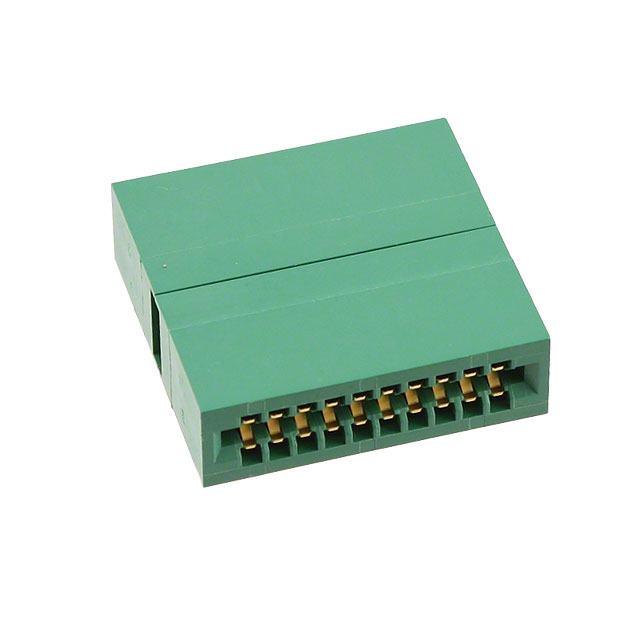

AAC10FSLN
ActiveSullins Connector Solutions
CONN EDGE ADAPT CARD-CARD 20POS
Deep-Dive with AI
Search across all available documentation for this part.
AAC10FSLN
ActiveSullins Connector Solutions
CONN EDGE ADAPT CARD-CARD 20POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AAC10FSLN |
|---|---|
| Adapter Type | Card Slot to Card Slot |
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Current Rating (Per Contact) | 3 A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 20.93 | |
Description
General part information
AAC10 Series
20 Position Edge Adapter Connector Card Slot to Card Slot Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
