DF62W-3P-2.2DSA(20)

Active

Hirose Electric USA, Inc.

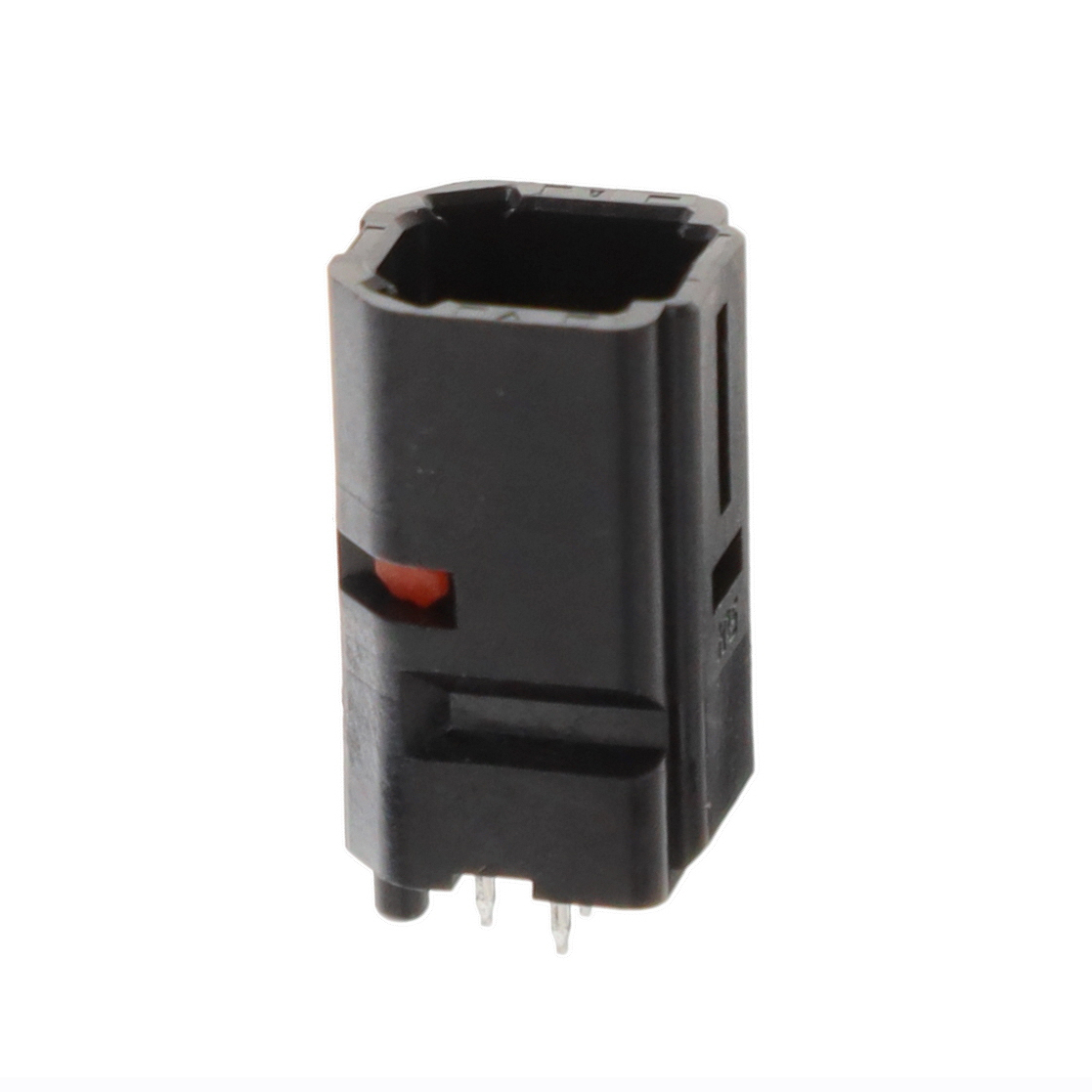

CONN HEADER VERT 3POS 2.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF62W-3P-2.2DSA(20)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 3POS 2.2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62W-3P-2.2DSA(20)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67
Insulation Color	Black
Insulation Height	0.61 in
Insulation Height	15.49 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

DF62W Series

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Fastening Type	Contact Type	Number of Rows	Note	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Row Spacing	Row Spacing	Color	Insulation Material	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Contact Shape	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Ingress Protection	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric USA, Inc. DF62W-2022SCFA	Gold	8 çin	0.203 çm	Crimp	20 AWG	22 AWG	Socket
Hirose Electric USA, Inc. DF62W-6EP-2.2C				Crimp				Latch Holder	Male Pin	2	Contacts Not Included	0.087 in	2.2 mm	6	Plug	2 mm	0.079 in	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Water Resistant	-35 °C	105 ░C
Hirose Electric USA, Inc. DF62W-9P-2.2DSA(01)								Latch Holder	Male Pin	3				9	Header				Polybutylene Terephthalate (PBT)	Through Hole	Board Guide	-35 °C	105 ░C	250 VDC	Gold	UL94 V-0	Square	Black	All	Varies by Wire Gauge	Phosphor Bronze	Shrouded - 4 Wall	0.087 in	2.2 mm	IP67	Solder	2.84 mm	0.112 in	0.61 in	15.49 mm	Board to Cable/Wire
Hirose Electric USA, Inc. DF62W-9EP-2.2C				Crimp				Latch Holder	Male Pin	3	Contacts Not Included	0.087 in	2.2 mm	9	Plug	2 mm	0.079 in	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Water Resistant	-35 °C	105 ░C
Hirose Electric USA, Inc. DF62W-2S-2.2C(11)				Crimp				Latch Lock	Female Socket	1	Contacts Not Included	0.087 in	2.2 mm	2	Socket			Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Water Resistant	-35 °C	105 ░C
Hirose Electric USA, Inc. DF62W-3S-2.2C				Crimp				Latch Lock	Female Socket	2	Contacts Not Included	0.087 in	2.2 mm		Socket	2 mm	0.079 in	White	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Water Resistant	-35 °C	105 ░C
Hirose Electric USA, Inc. DF62W-4S-2.2C(11)				Crimp				Latch Lock	Female Socket	2	Contacts Not Included	0.087 in	2.2 mm	4	Socket	2 mm	0.079 in	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Water Resistant	-35 °C	105 ░C
Hirose Electric USA, Inc. DF62W-3P-2.2DSA(20)								Latch Holder	Male Pin	2					Header				Polybutylene Terephthalate (PBT)	Through Hole	Board Guide	-35 °C	105 ░C	250 VDC	Gold	UL94 V-0	Square	Black	All	Varies by Wire Gauge		Shrouded - 4 Wall	0.087 in	2.2 mm	IP67	Solder	2.84 mm	0.112 in	0.61 in	15.49 mm	Board to Cable/Wire	0.079 in	2 mm
Hirose Electric USA, Inc. DF62W-2226SCF	Tin	39.4 Áin	1 Ám	Crimp	22 AWG	26 AWG	Socket
Hirose Electric USA, Inc. DF62W-2226SCA	Gold	8 çin	0.203 çm	Crimp	22 AWG	26 AWG	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.64
		10	$ 1.42
		100	$ 1.27
	Tape & Reel (TR)	256	$ 1.15
		512	$ 1.06
		768	$ 1.03
		1280	$ 0.91
		1792	$ 0.88
		2560	$ 0.85
		6400	$ 0.81

Description

General part information

DF62W Series

Connector Header Through Hole 3 position 0.087" (2.20mm)

Documents

Technical documentation and resources
