DS2778G+T&R

Active

Analog Devices Inc./Maxim Integrated

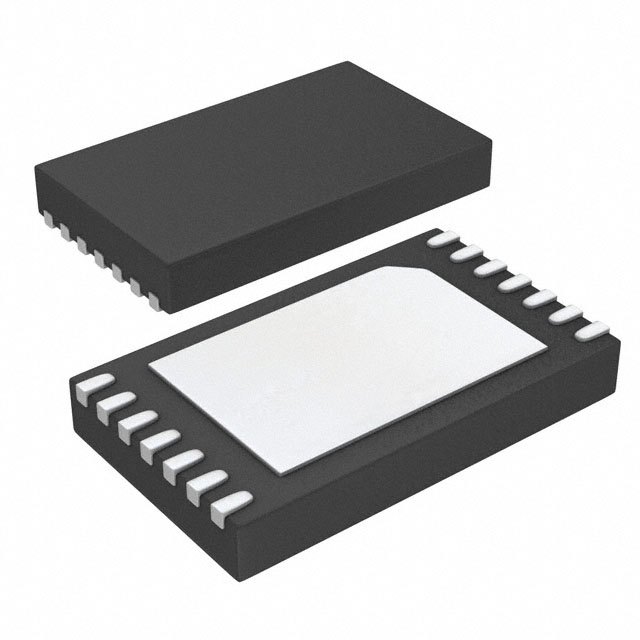

IC BATT MFUNC LI-ION 2CEL 14TDFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC BATT MFUNC LI-ION 2CEL 14TDFN

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Number of Cells	Package / Case	Mounting Type	Supplier Device Package	Function	Battery Chemistry	Fault Protection
Analog Devices Inc./Maxim Integrated DS2778G+	70 °C	-20 °C	I2C	2	14-WFDFN Exposed Pad	Surface Mount	14-TDFN (3x5)	Multi-Function Controller	Lithium Ion/Polymer	Over Current Over Voltage
Analog Devices Inc./Maxim Integrated DS2778G+T&R	70 °C	-20 °C	I2C	2	14-WFDFN Exposed Pad	Surface Mount	14-TDFN (3x5)	Multi-Function Controller	Lithium Ion/Polymer	Over Current Over Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 4.63

General part information

Battery Multi-Function Controller IC Lithium Ion/Polymer 14-TDFN (3x5)

Technical documentation and resources

No documents available
