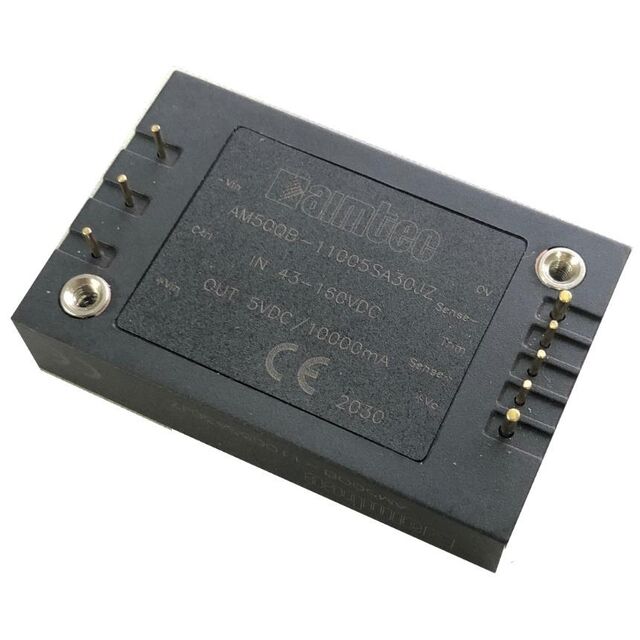

AM50QB-11048SA30JZ-K-B

Active

aimtec

DC DC CONVERTER 48V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM50QB-11048SA30JZ-K-B

Active

aimtec

DC DC CONVERTER 48V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM50QB-11048SA30JZ-K-B

Applications	Industrial, Railway
Current - Output (Max) [Max]	1.04 A
Efficiency	87 %
Features	Remote Sense, Heatsink, Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	50 W
Size / Dimension [x]	60.8 mm
Size / Dimension [x]	2.39 "
Size / Dimension [y]	39.2 mm
Size / Dimension [y]	1.54 "
Size / Dimension [z]	1.21 "
Size / Dimension [z]	27.8 mm
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

AM50QB Series

Part	Mounting Type	Number of Outputs	Efficiency	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Isolation	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Input (Min) [Min]	Applications	Type	Standard Number	Approval Agency
aimtec AM50QB-11003SA30JZ-B	Through Hole	1	86 %	Quarter Brick	11.3 A	160 V	-40 °C	105 ░C	Quarter Brick	3000 V	3.3 V	Adjustable Output Remote On/Off Remote Sense	2.39 "	0.5 in	12.7 mm	1.54 "	39.2 mm	60.8 mm	37.5 W	43 V	Railway	Isolated Module	50155
aimtec AM50QB-11015SA30JZ-B	Through Hole	1	88 %	Quarter Brick	3.33 A	160 V	-40 °C	105 ░C	Quarter Brick	3000 V	15 V	Adjustable Output Remote On/Off Remote Sense	2.39 "	0.5 in	12.7 mm	1.54 "	39.2 mm	60.8 mm	50 W	43 V	Railway	Isolated Module	50155
aimtec AM50QB-11048SA30JZ-K-B	Through Hole	1	87 %	Quarter Brick	1.04 A	160 V	-40 °C	105 ░C	Quarter Brick	3000 V	48 V	Adjustable Output Heatsink Remote On/Off Remote Sense	2.39 "	1.21 "	27.8 mm	1.54 "	39.2 mm	60.8 mm	50 W	43 V	Industrial Railway	Isolated Module
aimtec AM50QB-11048SA30JZ-B	Through Hole	1	87 %	Quarter Brick	1.04 A	160 V	-40 °C	105 ░C	Quarter Brick	3000 V	48 V	Adjustable Output Remote On/Off Remote Sense	2.39 "	0.5 in	12.7 mm	1.54 "	39.2 mm	60.8 mm	50 W	43 V	Railway	Isolated Module	50155
aimtec AM50QB-11024SA30JZ-B	Through Hole	1	89 %	Quarter Brick	2.08 A	160 V	-40 °C	105 ░C	Quarter Brick	3000 V	24 V	Adjustable Output Remote On/Off Remote Sense	2.39 "	0.5 in	12.7 mm	1.54 "	39.2 mm	60.8 mm	50 W	43 V	Railway	Isolated Module	50155
aimtec AM50QB-11024S-NZ	Through Hole	1	90 %		2.083 A	160 V	-40 °C	100 °C	8-DIP Module	3000 V	24 V		2.39 "	0.5 in	12.7 mm	1.54 "	39.2 mm	60.8 mm	50 W	66 V	ITE (Commercial)	Isolated Module		CE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 91.64
		5	$ 89.81
		10	$ 88.01
		20	$ 86.25
		40	$ 84.53
		60	$ 82.84
		80	$ 81.18

Description

General part information

AM50QB Series

Isolated Module DC DC Converter 1 Output 48V 1.04A 43V - 160V Input
