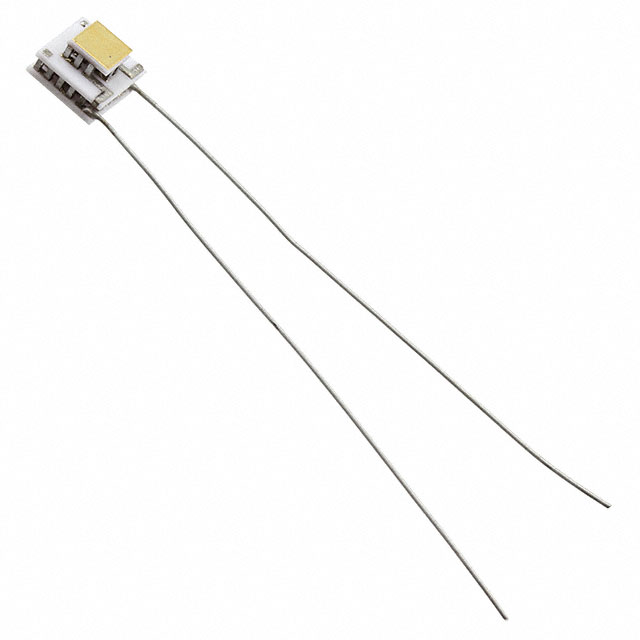

NL2011T-01AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 6.6X6.6X4.29MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 6.6X6.6X4.29MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL2011T-01AC

Current - Max [Max]	0.7 A
Delta Tmax @ Th	76 °C, 27 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	4.29 mm
Number of Stages	2
Qmax @ Th	0.5 W
Resistance	2.52 Ohms
Size / Dimension [x]	6.6 mm
Size / Dimension [y]	6.6 mm
Voltage - Max [Max]	1.9 V

Part	Size / Dimension [y]	Size / Dimension [x]	Number of Stages	Voltage - Max [Max]	Resistance	Current - Max [Max]	Features	Qmax @ Th	Height [z]	Delta Tmax @ Th
Marlow Industries, Inc. NL2011T-01AC	6.6 mm	6.6 mm	2	1.9 V	2.52 Ohms	0.7 A	Exterior Metallization (Both Sides) Lead Wires	0.5 W	4.29 mm	27 °C 76 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 0.5W @ 27°C 0.7 A 85°C
