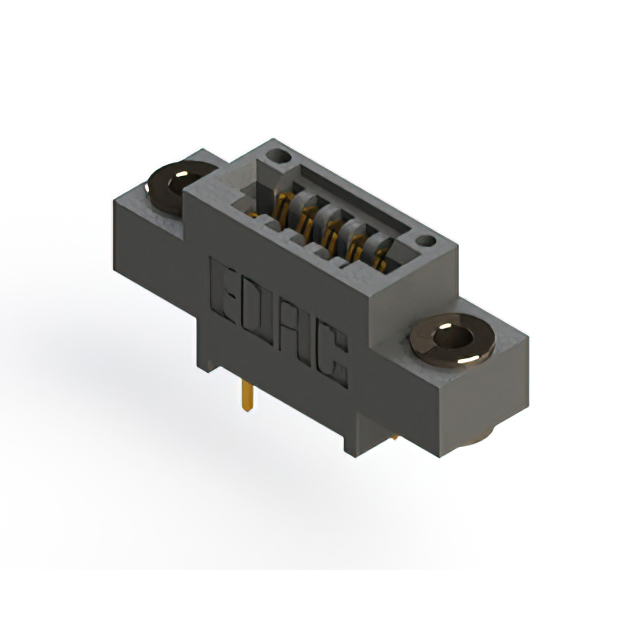

895-010-521-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 10POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-010-521-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 10POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-010-521-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-010 Series

...

Part	Termination Rows	Flange Feature	Gender	Termination	Contact Type	Color	Mounting Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Material	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Flange Feature	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-010-558-807	2	M3 Threaded Insert Top Mount Opening	Female	Solder	Cantilever	Black	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2
EDAC Inc. 895-010-523-502	2		Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in
EDAC Inc. 895-010-541-812	2	Side Mount Opening Unthreaded	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in
EDAC Inc. 895-010-521-208	2	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2
EDAC Inc. 895-010-521-802	2		Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in
EDAC Inc. 895-010-555-512	2	Side Mount Opening Unthreaded	Female	Solder	Cantilever	Black	Board Edge Straddle Mount	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in	Card Extender
EDAC Inc. 895-010-521-803	2	Floating Bobbin Top Mount Opening	Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2				2.95 mm	0.116 in
EDAC Inc. 895-010-544-112	1	Flush Mount Side Opening Unthreaded	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Copper Alloy	2.54 mm	0.1 in	10	10	10 Áin	0.25 Ám	Non Specified - Single Edge	Gold	125 °C	-40 °C	1				3.25 mm	0.128 "
EDAC Inc. 895-010-555-212	2	Flush Mount Side Opening Unthreaded	Female	Solder	Cantilever	Black	Board Edge Straddle Mount	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2			Card Extender	3.25 mm	0.128 "
EDAC Inc. 895-010-540-408	1	4-40 Threaded Insert Top Mount Opening	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Copper Alloy	2.54 mm	0.1 in	10	10	10 Áin	0.25 Ám	Non Specified - Single Edge	Gold	125 °C	-40 °C	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 51.25
Newark	Each	1	$ 61.50
		100	$ 38.45
		250	$ 28.64
		500	$ 26.73
		1000	$ 22.00

Description

General part information

895-010 Series

10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
