RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG316, BRASS
Deep-Dive with AI
Search across all available documentation for this part.
132178
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG316, BRASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132178 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-179, M17/152-RD316, 316 Double Braid, 188 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Ingress Protection | Weatherproof |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 375 V |
1321 Series
| Part | Contact Termination | Connector Style | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Mating Cycles | Body Material | Housing Color | Insertion Loss | Cable Group | Dielectric Material | Impedance | Includes | Frequency - Max [Max] | Shield Termination | Center Contact Plating | Center Contact Material | Mounting Type | Number of Ports | Style | Convert From (Adapter End) | Conversion Type | Convert To (Adapter End) | Adapter Series | Adapter Type | Center Gender | Mounting Feature | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | 500 V | Male Pin Plug | 500 | Brass | Gold | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 Connector 1 End Cap 1 Ferrule | 3 GHz | Crimp | Gold | Brass | Free Hanging (In-Line) Right Angle | 1 | ||||||||||
Amphenol RF | Gold | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 18 GHz | Gold | Beryllium Copper | Free Hanging (In-Line) | Straight | Female Socket SMA Jack | Same Series | Female Socket SMA Jack | SMA to SMA | Jack to Jack | Female to Female | ||||||||||||||
Amphenol RF | Solder Cup | SMA | Gold | -65 ░C | 165 °C | Female Socket Receptacle | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Solder | Gold | Beryllium Copper | 1 | Flange | ||||||||||||||
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | 375 V | Male Pin Plug | 500 | Brass | Gold | 188 316 Double Braid M17/152-RD316 RG-179 | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Crimp | Gold | Brass | Free Hanging (In-Line) | 1 | Weatherproof | |||||||||||
Amphenol RF | Solder Cup | SMA | Gold | -65 ░C | 165 °C | Female Socket Receptacle | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Solder | Gold | Beryllium Copper | 1 | Flange | ||||||||||||||
Amphenol RF | Solder Tab | SMA | Gold | -65 ░C | 165 °C | Female Socket Receptacle | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 18 GHz | Solder | Gold | Beryllium Copper | 1 | Flange | ||||||||||||||
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | Male Pin Plug | 500 | Brass | Gold | 178A 178B 196 196A M17/93-RG178 RG-178 | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink | 3 GHz | Crimp | Gold | Brass | Free Hanging (In-Line) Right Angle | 1 | Weatherproof | |||||||||||
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | 375 V | Female Socket Jack | 500 | Brass | Gold | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Crimp | Gold | Beryllium Copper | 1 | Flange | Weatherproof | |||||||||||
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | Female Socket Receptacle | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Solder | Gold | Beryllium Copper | 1 | Flange | Extended Insulation | |||||||||||||
Amphenol RF | Solder | SMA | Gold | -65 ░C | 165 °C | Female Socket Receptacle | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | 50 Ohms | 12.4 GHz | Solder | Gold | Beryllium Copper | 1 | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1321 Series

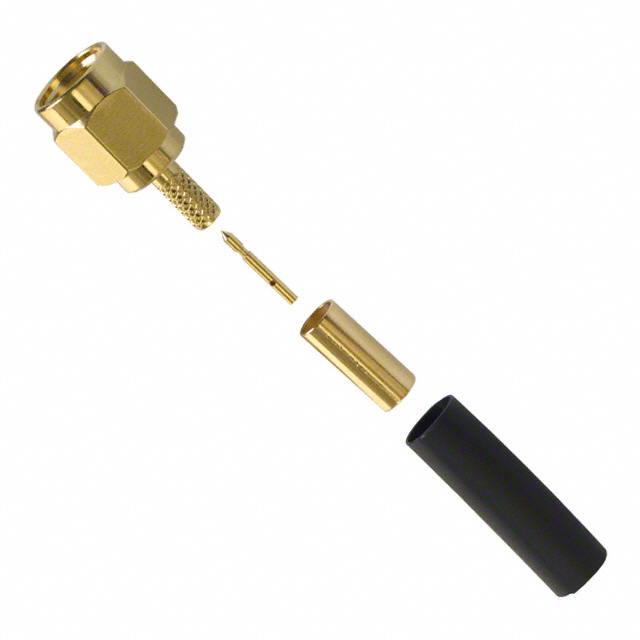

The 132178 is a SMA Straight Crimp Plug with gold-plated beryllium copper contact. The plug is made of brass with gold plated finish and comes with a PTFE insulator. It is suitable for M17/152-RD316, RG-179 DB, RG-188 DB and RG-316 double braided cable.
