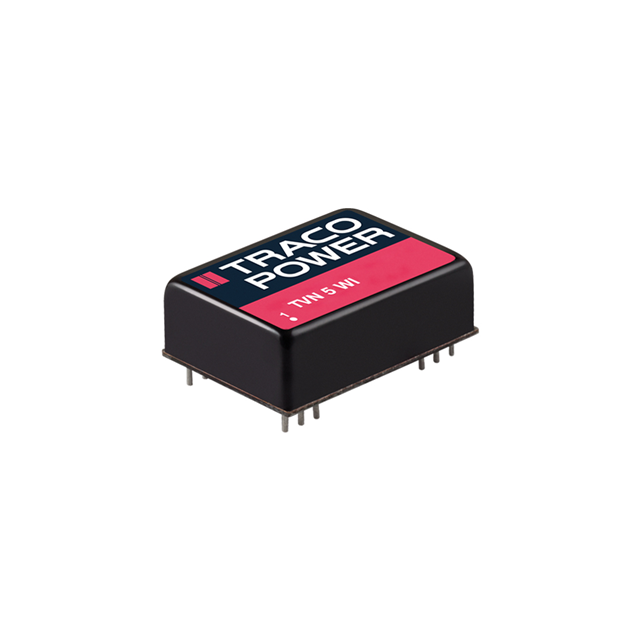

TVN 5-0925WI

Active

Traco Power

DC DC CONVERTER +/-24V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TVN 5-0925WI

Active

Traco Power

DC DC CONVERTER +/-24V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TVN 5-0925WI

Applications	ITE (Commercial)
Current - Output (Max)	104 mA
Efficiency	87 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Package / Case	12 Leads
Power (Watts)	5 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.79 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	24 V
Voltage - Output 2	-24 V

TVN 5 Series

Part	Power (Watts)	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Applications	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Package / Case	Voltage - Output 2	Current - Output (Max)
Traco Power TVN 5-0913WI	5 W	1	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	87 %	ITE (Commercial)	15 V	Isolated Module	12 V	Through Hole	4.5 V	24-DIP Module 10 Leads	333 mA	32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "
Traco Power TVN 5-4823WI	5 W	2	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	86 %	ITE (Commercial)	15 V	Isolated Module	75 V	Through Hole	18 V	24-DIP Module		32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "	166 mA	166 mA	12 Leads	-15 V
Traco Power TVN 5-0925WI	5 W	2	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	87 %	ITE (Commercial)	24 V	Isolated Module	12 V	Through Hole	4.5 V	24-DIP Module		32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "			12 Leads	-24 V	104 mA
Traco Power TVN 5-0921WI	5 W	2	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	84 %	ITE (Commercial)	5 V	Isolated Module	12 V	Through Hole	4.5 V	24-DIP Module		32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "	500 mA	500 mA	12 Leads	-5 V
Traco Power TVN 5-2423WI	5 W	2	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	86 %	ITE (Commercial)	15 V	Isolated Module	36 V	Through Hole	9 V	24-DIP Module		32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "	166 mA	166 mA	12 Leads	-15 V
Traco Power TVN 5-4822WI	5 W	2	1.6 kV	-40 °C	90 °C	OCP OVP Remote On/Off SCP	85 %	ITE (Commercial)	12 V	Isolated Module	75 V	Through Hole	18 V	24-DIP Module		32 mm	1.26 in	0.4 "	10.2 mm	20 mm	0.79 "		208 mA	12 Leads	-12 V	208 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 72.00
		10	$ 66.18
		25	$ 63.99
		50	$ 62.39
		100	$ 60.82
		250	$ 53.73

Description

General part information

TVN 5 Series

Isolated Module DC DC Converter 2 Output 24V -24V 104mA, 104mA 4.5V - 12V Input
