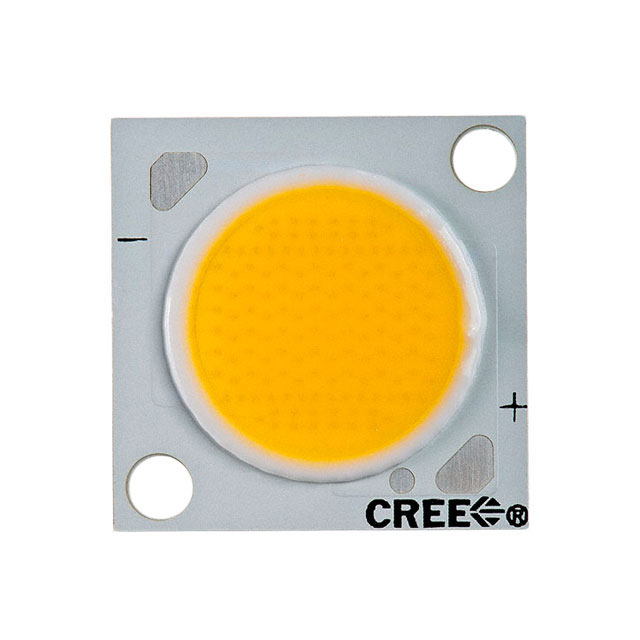

CXA2011-0000-000P00J050H

Obsolete

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Search across all available documentation for this part.

Obsolete

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	CXA2011-0000-000P00J050H

CCT (K)	5000 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	1 A
Current - Test	270 mA
Height [z]	2.28 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	104 lm/W
Luminous Flux @ Current/Temperature	1120 lm
Size / Dimension [x]	22 mm
Size / Dimension [y]	22 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	40 V

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Type	Color	Viewing Angle	Lens Type	Configuration	Current - Max [Max]	Current - Test	Temperature - Test	Lumens/Watt @ Current - Test	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)
Cree LED CXA2011-0000-000P00G00E7	22 mm	22 mm	80	40 V	Chip On Board (COB)	Warm White	120 °	Flat	Square	1 A	270 mA	85 °C	78 lm/W	2.28 mm	840 lm
Cree LED CXA2011-0000-000P00J00E3	22 mm	22 mm	70	40 V	Chip On Board (COB)	Cool White	120 °	Flat	Square	1 A	270 mA	85 °C	104 lm/W	2.28 mm	1120 lm	5000 K
Cree LED CXA2011-0000-000P00J050H	22 mm	22 mm	70	40 V	Chip On Board (COB)	Cool White	120 °	Flat	Square	1 A	270 mA	85 °C	104 lm/W	2.28 mm	1120 lm	5000 K
Cree LED CXA2011-0000-000P00G035H	22 mm	22 mm	77	40 V	Chip On Board (COB)	Warm White	120 °	Flat	Square	1 A	270 mA	85 °C	78 lm/W	2.28 mm	840 lm	3500 K
Cree LED CXA2011-0000-000P00H00E7	22 mm	22 mm	80	40 V	Chip On Board (COB)	Warm White	120 °	Flat	Square	1 A	270 mA	85 °C	90 lm/W	2.28 mm	970 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA2011 White, Cool Square
