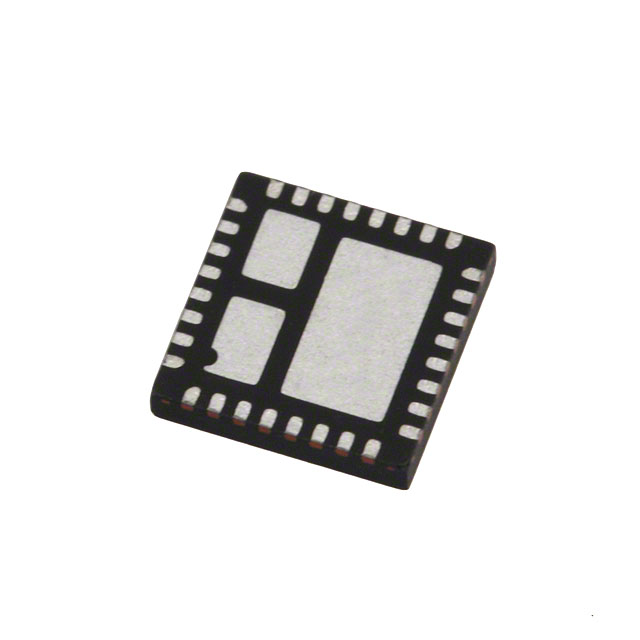

SC9301MLTRT
ObsoleteSemtech Corporation
IC REG BUCK ADJ 10A 32MLPQ
Deep-Dive with AI
Search across all available documentation for this part.
SC9301MLTRT
ObsoleteSemtech Corporation
IC REG BUCK ADJ 10A 32MLPQ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC9301MLTRT |
|---|---|
| Current - Output | 10 A |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 200 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 32-MLPQ (5x5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC9301 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 10A 32-WFQFN Exposed Pad
Documents
Technical documentation and resources
No documents available
