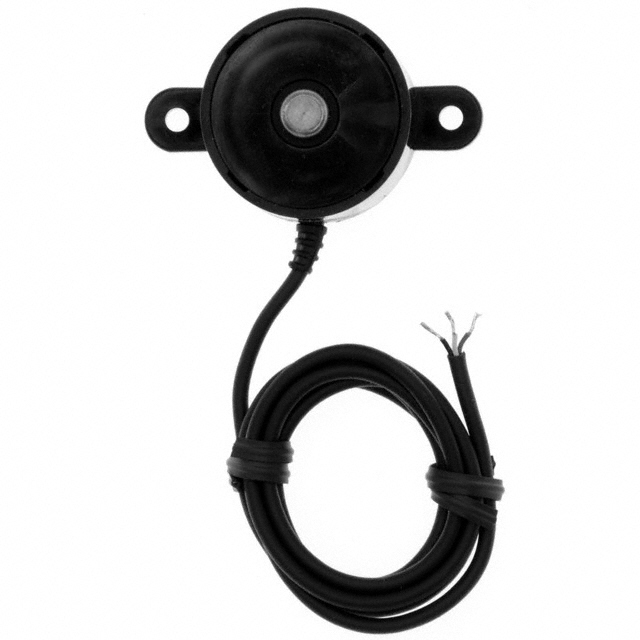

FC2231-0000-0050-L

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 50LBS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 50LBS

Technical Specifications

Parameters and characteristics for this part

Specification	FC2231-0000-0050-L

Accuracy	1 %
Actuator Style/Size	6 mm
Actuator Style/Size	Round
Actuator Type	Pushbutton
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	22.68 kgf
Operating Force	50 lbs
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Sensor Type	Load Cell

Part	Sensor Type	Includes	Compensated Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Actuator Type	Actuator Style/Size	Actuator Style/Size	Operating Force	Operating Force	Accuracy
TE Connectivity Measurement Specialties FC2231-0000-0050-L	Load Cell	Sensor	50 °C	85 °C	-40 °C	0.5 V	4.5 V	Pushbutton	6 mm	Round	22.68 kgf	50 lbs	1 %
TE Connectivity Measurement Specialties FC2231-0000-0010-L	Load Cell	Sensor	50 °C	85 °C	-40 °C	0.5 V	4.5 V	Pushbutton	6 mm	Round	4.54 kgf	10 lbs	1 %
TE Connectivity Measurement Specialties FC2231-0000-0025-L	Load Cell	Sensor	50 °C	85 °C	-40 °C	0.5 V	4.5 V	Pushbutton	6 mm	Round	11.34 kgf	25 lbs	1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR FORCE LOAD CELL 50LBS
