EPS060100-P5P

Obsolete

CUI Inc.

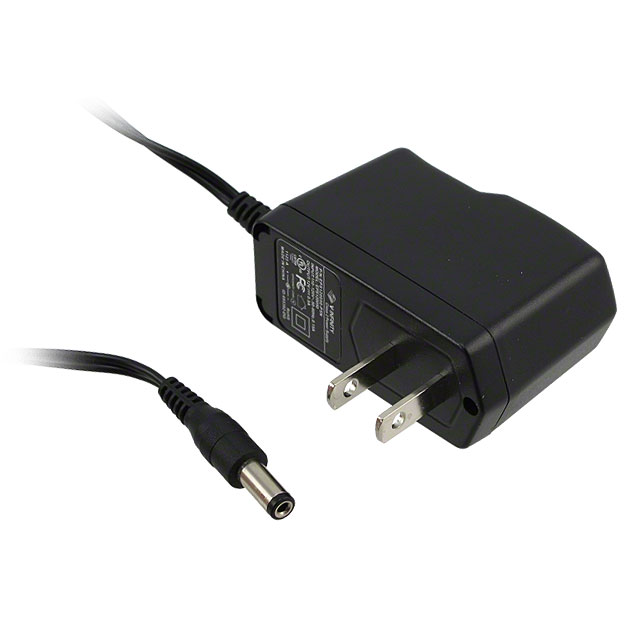

AC/DC WALL MOUNT ADAPTER 6V 6W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 6V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Input Type	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Current - Output (Max) [Max]	Input Connector	Approval Agency	No Load Power Consumption	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	Polarization
CUI Inc. EPS060100-P5P	1.83 m	72 in	100 VAC	132 VAC	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	6 V	Fixed Blade	6 W	ITE (Commercial)	40 °C	0 °C	North America	1 A	NEMA 1-15P	cULus	300 mW	Level V	Barrel Plug	2.1 mm 5.5 mm	12 mm	Wall Mount (Class II)	Positive Center
CUI Inc. EPS060100-P7P	1.83 m	72 in	100 VAC	132 VAC	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	6 V	Fixed Blade	6 W	ITE (Commercial)	40 °C	0 °C	North America	1 A	NEMA 1-15P	cULus	300 mW	Level V	Barrel Plug	1.35 mm 3.5 mm	9.5 mm	Wall Mount (Class II)	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources

No documents available
