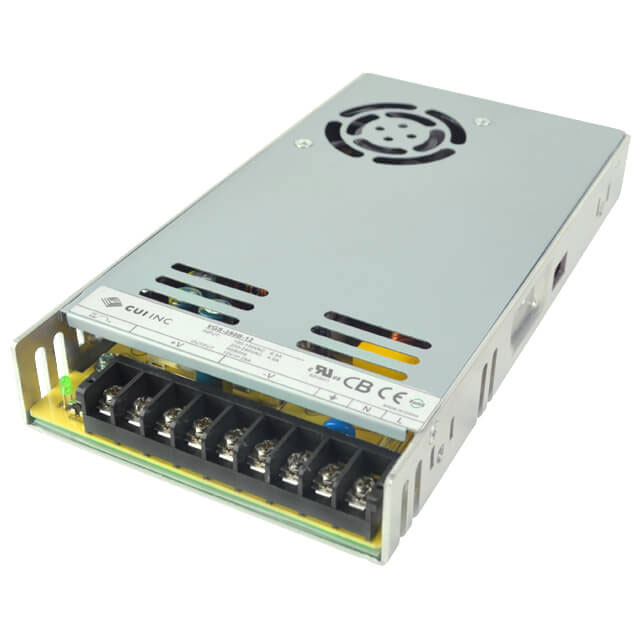

VGS-350B-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 350W

Deep-Dive with AI

Search across all available documentation for this part.

VGS-350B-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 350W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-350B-48

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Current - Output 1	7.3 A
Efficiency	89 %
Features	Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	350 W
Size / Dimension [x]	215 mm
Size / Dimension [x]	8.46 "
Size / Dimension [y]	4.53 "
Size / Dimension [y]	115 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Enclosed
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	90 VAC, 180 VAC
Voltage - Isolation	1.5 kV
Voltage - Output 1	48 V

VGS-350 Series

Part	Type	Voltage - Output 1	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Approval Agency	Features	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Applications
CUI Inc. VGS-350C-36	Enclosed	36 V	349 W	Chassis Mount	70 °C	-30 °C	9.7 A	1	4.53 "	30 mm	115 mm	8.47 in	215 mm	1.18 in	3000 V	CE cURus	Adjustable Output Universal Input	88 %	132 VAC 264 VAC 373 VDC	90 VAC 180 VAC 240 V	60335-1 62368-1	Household Appliances ITE (Commercial)
CUI Inc. VGS-350C-5-B	Conformal Coated Enclosed	5 V	300 W	Chassis Mount	70 °C	-30 °C	60 A	1	4.53 "	30 mm	115 mm	8.47 in	215 mm	1.18 in	3000 V	CE cURus	Adjustable Output Universal Input	84 %	132 VAC 264 VAC 373 VDC	90 VAC 180 VAC 240 V	60335-1 62368-1	Household Appliances ITE (Commercial)
CUI Inc. VGS-350C-15	Enclosed	15 V	348 W	Chassis Mount	70 °C	-30 °C	23.2 A	1	4.53 "	30 mm	115 mm	8.47 in	215 mm	1.18 in	3000 V	CE cURus	Adjustable Output Universal Input	87 %	132 VAC 264 VAC 373 VDC	90 VAC 180 VAC 240 V	60335-1 62368-1	Household Appliances ITE (Commercial)
CUI Inc. VGS-350C-48-A	Enclosed	48 V	350 W	Chassis Mount	70 °C	-30 °C	7.3 A	1	4.53 "	30 mm	115 mm	8.47 in	215 mm	1.18 in	3000 V	CE cURus	Adjustable Output Universal Input	89 %	132 VAC 264 VAC 373 VDC	90 VAC 180 VAC 240 V	60335-1 62368-1	Household Appliances ITE (Commercial)
CUI Inc. VGS-350C-48-B	Conformal Coated Enclosed	48 V	350 W	Chassis Mount	70 °C	-30 °C	7.3 A	1	4.53 "	30 mm	115 mm	8.47 in	215 mm	1.18 in	3000 V	CE cURus	Adjustable Output Universal Input	89 %	132 VAC 264 VAC 373 VDC	90 VAC 180 VAC 240 V	60335-1 62368-1	Household Appliances ITE (Commercial)
CUI Inc. VGS-350B-48	Enclosed	48 V	350 W	Chassis Mount	70 °C	-20 °C	7.3 A	1	4.53 "	30 mm	115 mm	8.46 "	215 mm	1.18 in	1.5 kV	CB Scheme EN FCC IEC SIQ TUV UL	Adjustable Output	89 %	132 VAC 264 VAC	90 VAC 180 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	ITE (Commercial)
CUI Inc. VGS-350B-30	Enclosed	30 V	348 W	Chassis Mount	70 °C	-20 °C	11.6 A	1	4.53 "	30 mm	115 mm	8.46 "	215 mm	1.18 in	1.5 kV	CB Scheme EN FCC IEC SIQ TUV UL	Adjustable Output	88 %	132 VAC 264 VAC	90 VAC 180 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	ITE (Commercial)
CUI Inc. VGS-350B-12	Enclosed	12 V	348 W	Chassis Mount	70 °C	-20 °C	29 A	1	4.53 "	30 mm	115 mm	8.46 "	215 mm	1.18 in	1.5 kV	CB Scheme EN FCC IEC SIQ TUV UL	Adjustable Output	85 %	132 VAC 264 VAC	90 VAC 180 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.26
		5	$ 46.41
		10	$ 45.23

Description

General part information

VGS-350 Series

Enclosed AC DC Converters 1 Output 48V 90 ~ 132 VAC, 180 ~ 264 VAC Input
