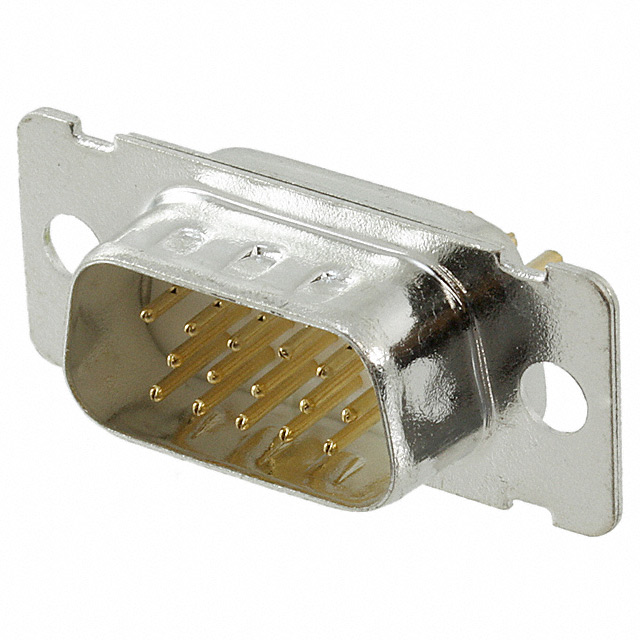

40-9515HDM

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN D-SUB HD PLUG 15P SLDR CUP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN D-SUB HD PLUG 15P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	40-9515HDM

Color	White
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density

Part	Contact Material	Number of Positions	Contact Type	Flange Feature	Features	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Contact Finish Thickness	Mounting Type	Number of Rows	Material Flammability Rating	Connector Style	Connector Type	Dielectric Material
Cinch Connectivity Solutions AIM-Cambridge 40-9515HDM	Copper Alloy	15	Signal	Housing/Shell (Unthreaded)	Grounding Indents	White	DE E	1	High Density	Gold	Flash	Free Hanging (In-Line)	3	UL94 V-0	D-Sub High Density	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Plug, Male Pins Connector

Technical documentation and resources

No documents available
