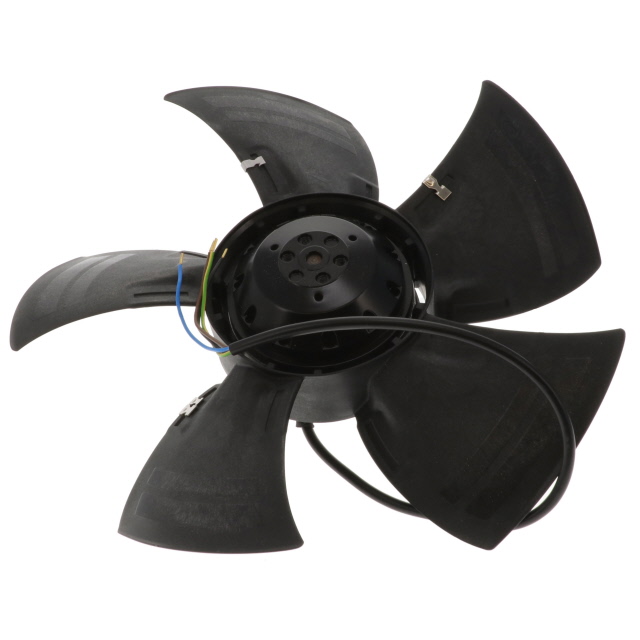

A4E300-AS72-01

Active

ebm-papst Inc.

AC AXIALFAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIALFAN

Technical Specifications

Parameters and characteristics for this part

Specification	A4E300-AS72-01

Approval Agency	UL, EAC, CCC, CE
Bearing Type	Ball
Current Rating (Amps)	0.42 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protection (TOP)
Ingress Protection	IP44
Material - Blade	Steel, Polypropylene (PP) Coating
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	96 W
RPM	1500 RPM
Size / Dimension	Round
Size / Dimension [diameter]	300 mm
Static Pressure	60 Pa
Static Pressure	0.241 in H2O
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	1.7 kg
Weight	3.7 lbs
Width [y]	73.4 mm

Part	Approval Agency	Current Rating (Amps)	RPM	Termination	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	Voltage - Rated	Static Pressure	Static Pressure	Features	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Material - Blade	Ingress Protection	Fan Type	Bearing Type
ebm-papst Inc. A4E300-AS72-01	CCC CE EAC UL	0.42 A	1500 RPM	4 Wire Leads	Round	300 mm	96 W	230 VAC	60 Pa	0.241 in H2O	Capacitor Thermal Overload Protection (TOP)	73.4 mm	50 °C	-25 °C	-25 °C	50 °C	1.7 kg	3.7 lbs	Polypropylene (PP) Coating Steel	IP44	Tubeaxial	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 300mm Dia Ball 4 Wire Leads
