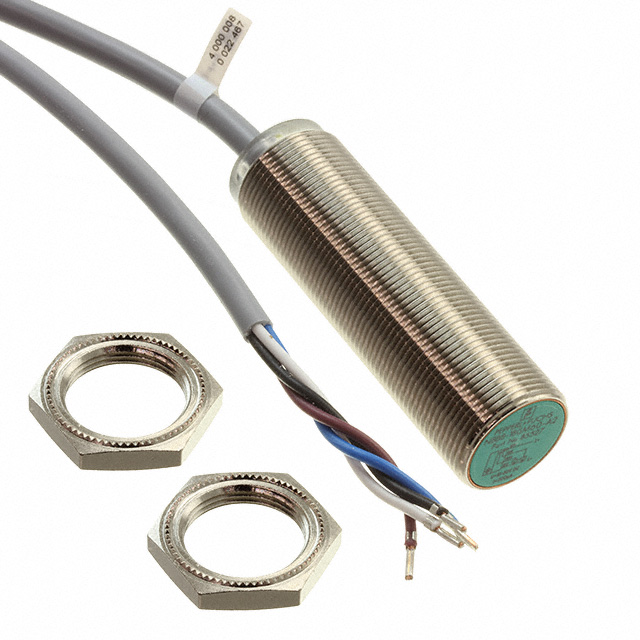

NBB8-18GM60-A2

Obsolete

PEPPERL+FUCHS

INDUCTIVE SEN 8MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB8-18GM60-A2

Obsolete

PEPPERL+FUCHS

INDUCTIVE SEN 8MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB8-18GM60-A2

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	4-Wire, PNP-NC/NO
Package / Case	Cylinder, Threaded - M18
Sensing Distance	0.315 in
Sensing Distance	8 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB8-18 Series

Part	Material - Body	Shielding	Indicator [custom]	Termination Style	Sensing Distance	Sensing Distance	Ingress Protection	Package / Case	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type
PEPPERL+FUCHS NBB8-18GM60-US-V12	Nickel-Plated Brass	Unshielded	LED	Connector	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	250 VAC 300 VDC	20 VDC 20 VAC	SCR-NO 2-Wire
PEPPERL+FUCHS NBB8-18GM60-US	Nickel-Plated Brass	Unshielded	LED	Cable	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	250 VAC 300 VDC	20 VDC 20 VAC	SCR-NO 2-Wire
PEPPERL+FUCHS NBB8-18GM50-E2-V1-M	Nickel-Plated Brass	Unshielded	LED	Connector	0.315 in	8 mm	IP68 IP69K	Cylinder Threaded - M18	Inductive	85 °C	-40 °C	60 V	5 V	PNP-NO 3-Wire
PEPPERL+FUCHS NBB8-18GM60-A2	Nickel-Plated Brass	Unshielded	LED	Cable	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	30 VDC	10 VDC	4-Wire PNP-NC/NO
PEPPERL+FUCHS NBB8-18GM60-A2-V1	Nickel-Plated Brass	Unshielded	LED	Connector	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-40 °C	30 VDC	10 VDC	4-Wire PNP-NC/NO
PEPPERL+FUCHS NBB8-18GM30-E2-V1	Nickel-Plated Brass	Unshielded	LED	Connector	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-40 °C	30 VDC	10 VDC	PNP-NO 3-Wire
PEPPERL+FUCHS NBB8-18GM50-E0-V1-M	Nickel-Plated Brass	Unshielded	LED	Connector	0.315 in	8 mm	IP68 IP69K	Cylinder Threaded - M18	Inductive	85 °C	-40 °C	60 V	5 V	NPN-NO 3-Wire
PEPPERL+FUCHS NBB8-18GM50-E2	Nickel-Plated Brass	Unshielded	LED	Cable	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	30 VDC	10 VDC	PNP-NO 3-Wire
PEPPERL+FUCHS NBB8-18GM60-A0	Nickel-Plated Brass	Unshielded	LED	Cable	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	30 VDC	10 VDC	NPN-NC/NO 4-Wire
PEPPERL+FUCHS NBB8-18GM50-E0	Nickel-Plated Brass	Unshielded	LED	Cable	0.315 in	8 mm	IP67	Cylinder Threaded - M18	Inductive	70 °C	-25 °C	30 VDC	10 VDC	NPN-NO 3-Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NBB8-18 Series

INDUCTIVE SEN 8MM PNP
