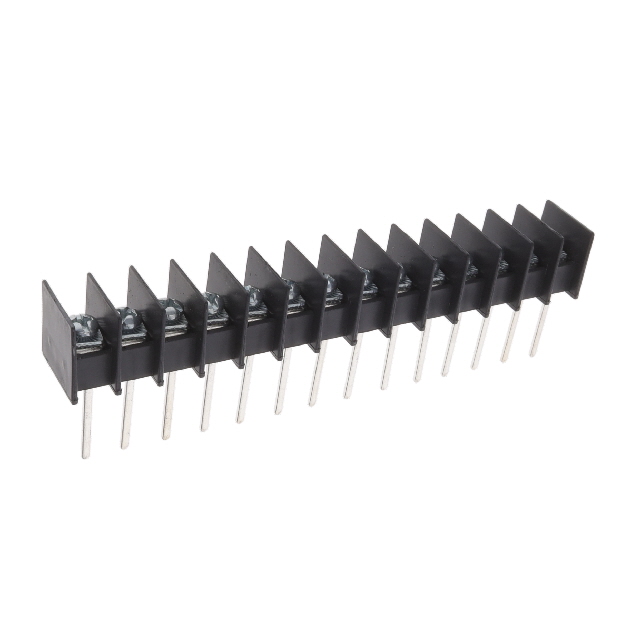

325121-14-0

Active

Curtis Industries

CONN BARRIER STRP 14CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

325121-14-0

Active

Curtis Industries

CONN BARRIER STRP 14CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325121-14-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Wire Wrap
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	14
Number of Rows	1
Number of Wire Entries	14
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325121 Series

Part	Mounting Type	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Number of Wire Entries	Voltage Rating	Pitch [x]	Pitch [x]	Operating Temperature	Material Flammability Rating	Number of Rows	Top Termination	Material - Insulation	Bottom Termination	Terminal Block Type	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries 325121-17-0	Through Hole	17	14 AWG	22 AWG	2 Wall (Dual)	17	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-11-0	Through Hole	11	14 AWG	22 AWG	2 Wall (Dual)	11	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-14-0	Through Hole	14	14 AWG	22 AWG	2 Wall (Dual)	14	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-04-0	Through Hole	4	14 AWG	22 AWG	2 Wall (Dual)	4	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-25-0	Through Hole	25	14 AWG	22 AWG	2 Wall (Dual)	25	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-22-0	Through Hole	22	14 AWG	22 AWG	2 Wall (Dual)		300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A	22
Curtis Industries 325121-19-0	Through Hole	19	14 AWG	22 AWG	2 Wall (Dual)	19	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-07-0	Through Hole	7	14 AWG	22 AWG	2 Wall (Dual)	7	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-03-0	Through Hole	3	14 AWG	22 AWG	2 Wall (Dual)	3	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-09-0	Through Hole		14 AWG	22 AWG	2 Wall (Dual)	9	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.51
		10	$ 7.34
		25	$ 6.91
		50	$ 6.68
		100	$ 6.50
		250	$ 6.34
		500	$ 6.25
		1000	$ 6.18

Description

General part information

325121 Series

14 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
