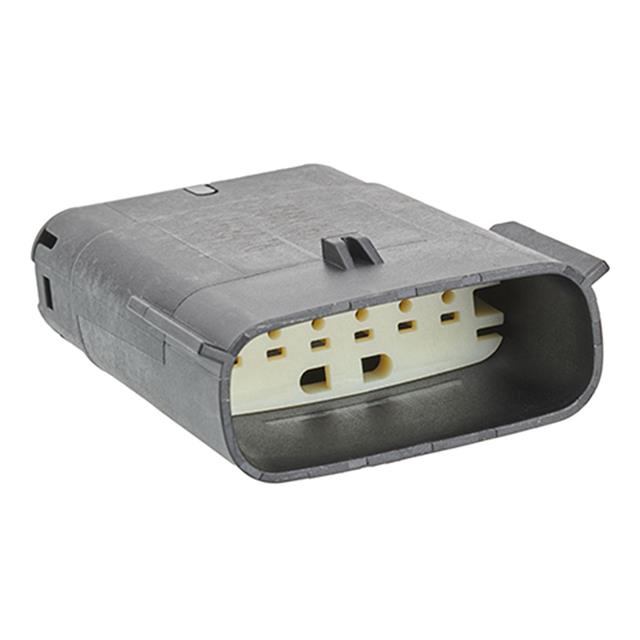

0334816602

Active

Molex

CONN PLUG HSG 6POS 3.50MM

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 6POS 3.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Color	Fastening Type	Insulation Material	Number of Positions	Number of Rows	Features	Pitch [x]	Pitch [x]	Note	Contact Termination	Connector Type	Mounting Type
Molex 0334810201	Male Blade	Black	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	2	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334810401	Male Blade	Black	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	4	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334810402	Male Blade	Gray	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	4	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334816602	Male Blade	Gray	Locking Ramp		6	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334810210	Male Blade	Yellow	Locking Ramp		2	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334810422
Molex 0334814402	Male Blade	Gray	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	4	1	Sealed	3.5 mm	0.138 in		Crimp	Plug	Free Hanging (In-Line)
Molex 0334810429	Male Blade	Gray	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	4	1	Sealed	3.5 mm	0.138 in		Crimp	Plug	Free Hanging (In-Line)
Molex 0334810203	Male Blade	Gray	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	2	1	Sealed	3.5 mm	0.138 in	Contacts Not Included	Crimp	Plug	Free Hanging (In-Line)
Molex 0334810501

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Plug Gray 0.138" (3.50mm)

Technical documentation and resources
