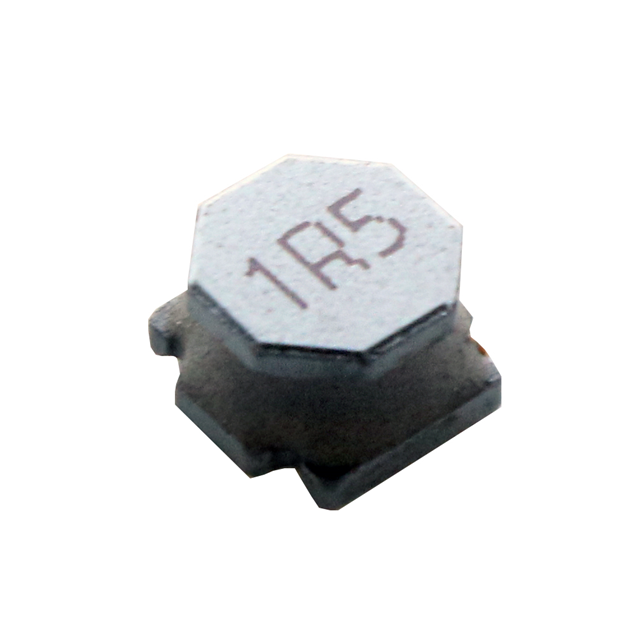

MPL-SE6040-1R5

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 1.5UH 6.8A 11.5MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

MPL-SE6040-1R5

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 1.5UH 6.8A 11.5MOHM SM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPL-SE6040-1R5

Current - Saturation (Isat)	8.9 A
Current Rating (Amps)	6.8 A
DC Resistance (DCR)	11.5 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	1.5 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard, 2 Lead
Shielding	Shielded
Size / Dimension [x]	0.236 in
Size / Dimension [x]	6 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm

MPL-SE6040 Series

Part	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shielding	DC Resistance (DCR)	Inductance	Current - Saturation (Isat)	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-8R2	4 A	0.26 " 6.6 mm	0.252 " 6.4 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	39 mOhm	8.2 µH	3.6 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-100	3.8 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	41 mOhm	10 µH	3.4 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-220	2.35 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	97 mOhm	22 µH	2.25 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-6R8	4.4 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	33 mOhm	6.8 µH	4.1 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-1R5	6.8 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	11.5 mOhm	1.5 µH	8.9 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-2R2	6.3 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	14.5 mOhm	2.2 µH	7.2 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-4R7	5.2 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	23 mOhm	4.7 ÁH	5 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-150	2.8 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded	70 mOhm	15 µH	2.7 A	100 kHz	0.236 in	0.236 in
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE6040-3R3	5.6 A	6 mm	6 mm	0.157 in	4 mm	Nonstandard 2 Lead	125 °C	-40 °C	Surface Mount	Shielded		3.3 µH	5.6 A	100 kHz	0.236 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
	Digi-Reel®	1	$ 0.60
	Tape & Reel (TR)	1000	$ 0.27

Description

General part information

MPL-SE6040 Series

1.5 µH Shielded Inductor 6.8 A 11.5mOhm Nonstandard, 2 Lead

Documents

Technical documentation and resources

No documents available
