734-102

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 2 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

734-102

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 2 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	734-102

Color	Gray
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - IEC	10 A
Current - UL	10 A
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

734 Series

Part	Color	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material	Positions Per Level	Voltage - IEC	Pitch [x]	Pitch [x]	Number of Levels	Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Current - UL	Mounting Type	Voltage - UL	Current - IEC	Material Flammability Rating
WAGO Corporation 734-102	Gray	7 mm	6 mm	2	1.5 mm²	0.08 mm²	Screwless - Spring Cage Tension Clamp	14 AWG	28 AWG	Copper Alloy	2	320 V	3.5 mm	0.138 in	1	Plug Female Sockets	100 °C	-60 °C	Tin	10 A	Free Hanging (In-Line)	300 V	10 A	UL94 V-0
WAGO Corporation 734-112	Gray	7 mm	6 mm	12	1.5 mm²	0.08 mm²	Screwless - Spring Cage Tension Clamp	14 AWG	28 AWG	Copper Alloy	12	320 V	3.5 mm	0.138 in	1	Plug Female Sockets	100 °C	-60 °C	Tin	10 A	Free Hanging (In-Line)	300 V	10 A	UL94 V-0
WAGO Corporation 734-206		7 mm	6 mm	6	1.5 mm²	0.08 mm²	Screwless - Spring Cage Tension Clamp	14 AWG	28 AWG	Copper Alloy	6	320 V	3.81 mm	0.15 in	1	Plug Female Sockets	100 °C	-60 °C	Tin	10 A	Free Hanging (In-Line)	300 V	10 A	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.57
		10	$ 3.25
		25	$ 2.84
		50	$ 2.59
		100	$ 2.39
		250	$ 2.17
		500	$ 2.04
		1000	$ 1.95
		5000	$ 1.79
Newark	Each	1	$ 3.64
		25	$ 3.42
		100	$ 3.22
		250	$ 3.03
		500	$ 2.80

Description

General part information

734 Series

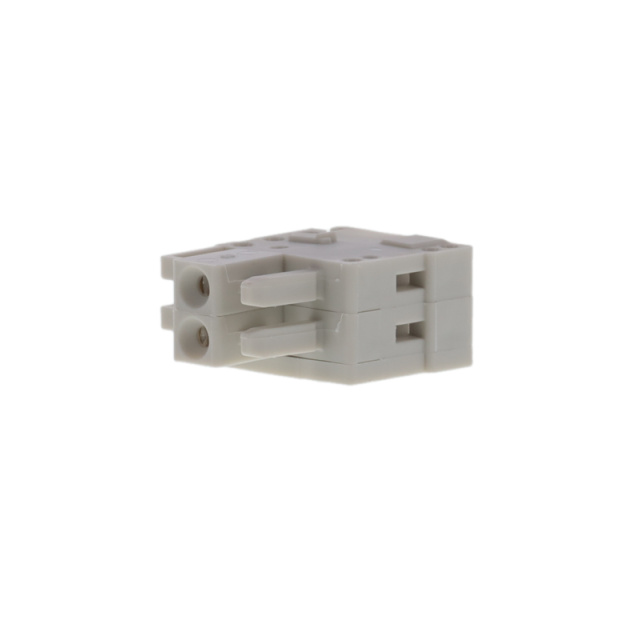

The 734-102 from Wago is a light gray colour, 2-pole female connector with 3.5mm (0.138inch) pin spacing. It is 100% protected against mismating, only mating halves with the same pole number can be connected together. This connector features strain relief plates and housings for in-the-field assembly. It has two connection points, two potentials and one level. It also has chrome-nickel spring steel (CrNi) lamping spring material, tin plated copper alloy contacts and polyamide 66 (PA 66) insulation. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 (Underwriters Laboratories Inc) and LR approvals. It has 0.03MJ fire load, 1.725g weight and 9.2mm (0.362inch) x 13.4mm (0.528inch) x 18.6mm (0.732inch) dimension (W x H x D).
