AS1112B-BQFT
Obsoleteams-OSRAM USA INC.
IC LED DRVR LINEAR 100MA 32TQFN
Deep-Dive with AI
Search across all available documentation for this part.
AS1112B-BQFT
Obsoleteams-OSRAM USA INC.
IC LED DRVR LINEAR 100MA 32TQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1112B-BQFT |
|---|---|
| Applications | Backlight, Signage |
| Current - Output / Channel | 100 mA |
| Frequency | 30 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

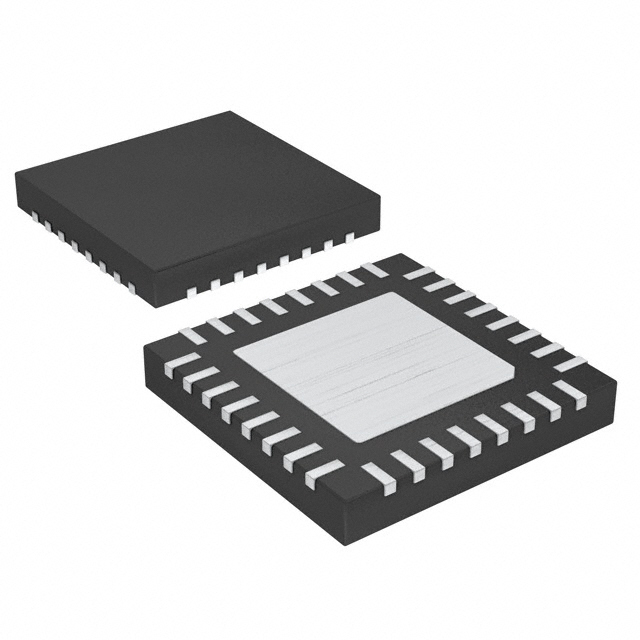

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| Topology | Shift Register |
| Type | Linear |
| Voltage - Output | 15 VDC |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1112 Series
LED Driver IC 16 Output Linear Shift Register Dimming 100mA 32-TQFN (5x5)
Documents
Technical documentation and resources
No documents available
