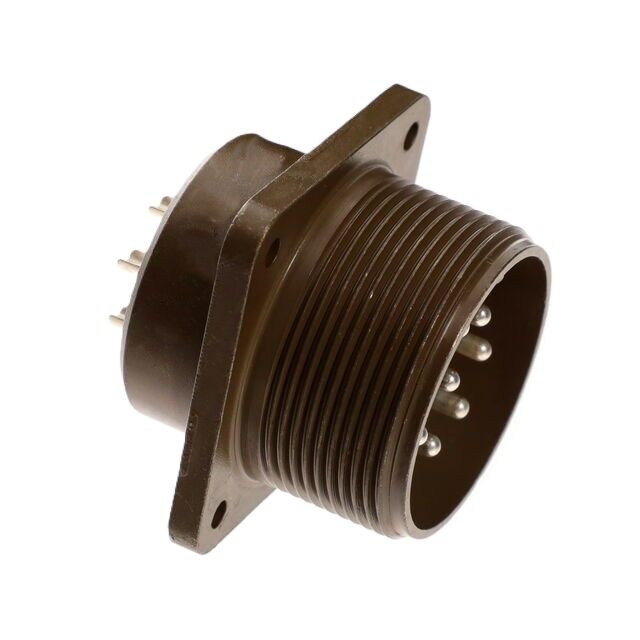

D38999/26TE8HN

Active

Corsair

CORSAIR_

Search across all available documentation for this part.

Active

Corsair

CORSAIR_

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26TE8HN

Applications	Aviation, Marine, Military, Aerospace
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Qualification	MIL-DTL-38999 Series II
Shell Size - Insert	17-8
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Applications	Mounting Type	Shielding	Connector Type	Termination	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Contact Finish - Mating	Shell Size, MIL	Shell Size - Insert	Features	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Voltage Rating	Ingress Protection	Contact Material	Qualification	Insert Material
Corsair D38999/26TE26HN	Aviation Marine Military	Free Hanging (In-Line)	Shielded	Male Pins Plug	Crimp	26	17	26	N	Gold	E
Corsair D38999/26TE8SNL
Corsair D38999/26TE8SN	Aviation Marine Military	Free Hanging (In-Line)	Shielded	Female Sockets Plug	Crimp	8			N	Gold	E	17-8
Corsair D38999/26TE99SN	Aviation Marine Military	Free Hanging (In-Line)	Shielded	Female Sockets Plug	Crimp	23	17	99	N	Gold	E
Corsair D38999/26TE35SN	Aviation Marine Military	Free Hanging (In-Line)	Shielded	Female Sockets Plug	Crimp	55 positions	17	35	N	Gold	E
Corsair D38999/26TE35JN
Corsair D38999/26TE8HN	Aerospace Aviation Marine Military	Free Hanging (In-Line)	Shielded	Male Pins Plug	Crimp	8			N	Gold	E	17-8	Self Locking	Military	-65 ░C	150 °C	UL94 V-0	500 VAC	Weathertight	Copper Alloy	MIL-DTL-38999 Series II	Thermoplastic
Corsair D38999/26TE26SNL
Corsair D38999/26TE2SNL
Corsair D38999/26TE6SNL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp
