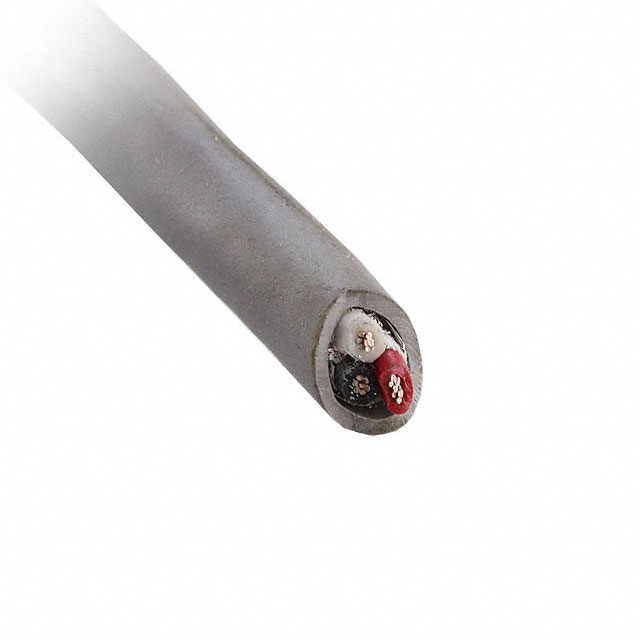

M2473 SL199
ActiveALPHA WIRE
CABLE 3COND 22AWG SHLD 3000'
Deep-Dive with AI
Search across all available documentation for this part.
M2473 SL199
ActiveALPHA WIRE
CABLE 3COND 22AWG SHLD 3000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2473 SL199 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.198 in |
| Jacket (Insulation) Diameter [diameter] | 5.03 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length | 914.4 m |
| Length | 3000 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 5000 | $ 0.90 | |
Description
General part information
M2473 Series
3 Conductor Multi-Conductor Cable Slate 22 AWG Foil, Braid 3000' (914.4m)
