1N5818M-13

Obsolete

Diodes Inc

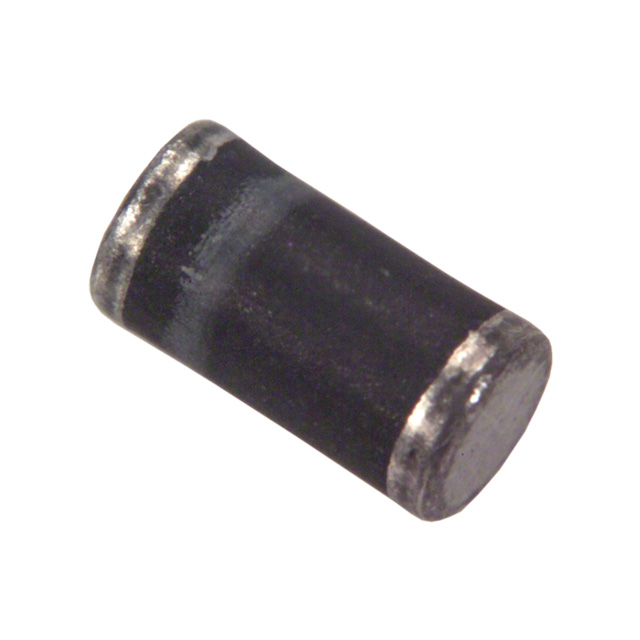

DIODE SCHOTTKY 30V 1A MELF

Search across all available documentation for this part.

Obsolete

Diodes Inc

DIODE SCHOTTKY 30V 1A MELF

Technical Specifications

Parameters and characteristics for this part

Specification	1N5818M-13

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-60 °C
Package / Case	DO-213AB, MELF (Glass)
Speed	200 mA, 500 ns
Supplier Device Package	MELF
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	550 mV

1.0A Schottky Barrier Rectifier

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Capacitance @ Vr, F	Current - Average Rectified (Io)	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Mounting Type
Diodes Inc 1N5818-T	Schottky	30 V	Axial DO-204AL DO-41	110 pF	1 A	200 mA 500 ns	125 °C	-65 C	1 mA	DO-41	550 mV	Through Hole
Diodes Inc 1N5818M-13	Schottky	30 V	DO-213AB MELF (Glass)		1 A	200 mA 500 ns	125 °C	-60 °C	1 mA	MELF	550 mV	Surface Mount
