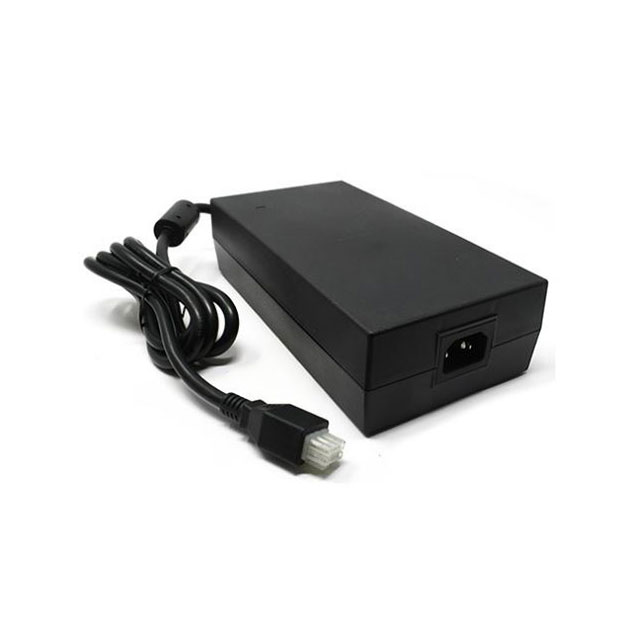

PMP400-18-S

Active

TT Electronics/Power Partners Inc.

AC/DC DESKTOP ADAPTER 48V 400W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC DESKTOP ADAPTER 48V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	PMP400-18-S

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Cord Length	36 in
Cord Length	0.91 m
Efficiency	89 %
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Connector	Rectangular, 8 Position
Power (Watts)	400 W
Region Utilized	International
Size / Dimension [x]	9.84 "
Size / Dimension [x]	249.9 mm
Size / Dimension [y]	119.9 mm
Size / Dimension [y]	4.72 in
Size / Dimension [z]	49.3 mm
Size / Dimension [z]	1.94 "
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Form	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Input Type	Output Connector	Cord Length	Cord Length	Applications	Input Connector	Approval Agency	Standard Number	Power (Watts)	Voltage - Output
TT Electronics/Power Partners Inc. PMP400-18-S	Desktop (Class I)	-10 °C	60 °C	90 VAC	264 VAC	89 %	119.9 mm	49.3 mm	9.84 "	4.72 in	1.94 "	249.9 mm	International	Cord	Rectangular 8 Position	36 in	0.91 m	Household Appliances ITE (Commercial)	IEC 320-C14	CB CE cURus	60601-1	400 W	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 177.62

General part information

48V 400 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources
