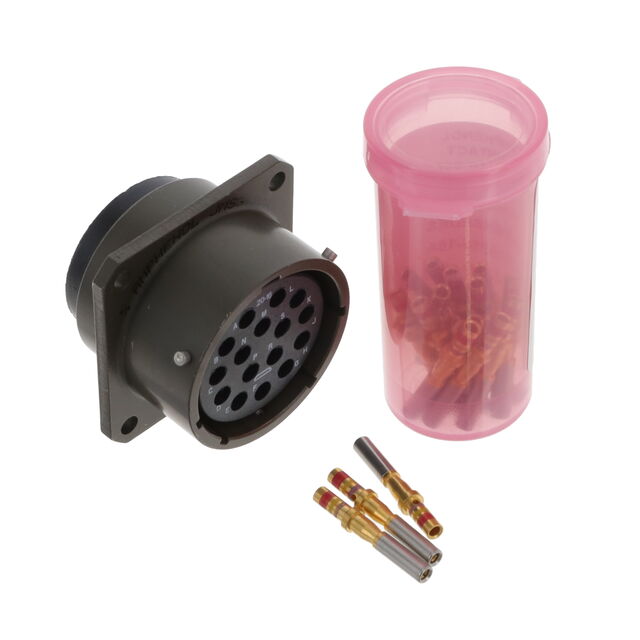

MS3122E20-16S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3122E20-16S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3122E20-16S |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Fastening Type | Bayonet Lock |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] [diameter] | 20 |
| Shell Size - Insert [Min] [diameter] | 16 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 1000 VAC |
MS3122E20 Series
| Part | Applications | Ingress Protection | Number of Positions | Primary Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Mounting Feature | Insert Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Termination | Contact Material | Shell Material | Qualification | Contact Finish - Mating | Connector Type | Orientation | Color | Grade | Shielding | Number of Positions | Contact Shape | Note | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Contact Size | Contact Type | Housing Color | Type | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | Environment Resistant | 41 | Metal | Bayonet Lock | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Flange | Neoprene | 20 | 41 | Crimp | Copper Alloy | Aluminum | MIL-DTL-26482 Series I | Gold | Male Pins Receptacle | N | Olive Drab | Military | Unshielded | |||||||||||
Amphenol Industrial Operations | Environment Resistant | Bayonet Lock | -55 °C | 125 °C | Chromate over Cadmium | Flange | Neoprene | Aluminum | MIL-DTL-26482 Series I | Receptacle Housing | N | Military | Unshielded | 16 | Circular | Contacts Not Included | 20 | 16 | 16 | Crimp | Olive Drab | For Female Sockets | |||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations | Aerospace Industrial Instrumentation Mass Transit Military | Environment Resistant | Metal | Bayonet Lock | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Flange | Neoprene | Crimp | Copper Alloy | Aluminum | MIL-DTL-26482 Series I | Gold | Receptacle Female Sockets | N | Olive Drab | Military | Unshielded | 16 | 20 | 16 | 1000 VAC | 13 A | |||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | Environment Resistant | Metal | Bayonet Lock | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Flange | Neoprene | Crimp | Copper Alloy | Aluminum | MIL-DTL-26482 Series I | Gold | Male Pins Receptacle | Z | Olive Drab | Military | Unshielded | 16 | 20 | 16 | |||||||||||
Amphenol Industrial Operations | Environment Resistant | Bayonet Lock | -55 °C | 125 °C | Chromate over Cadmium | Flange | Neoprene | Aluminum | MIL-DTL-26482 Series I | Receptacle Housing | N | Military | Unshielded | 16 | Circular | Contacts Not Included | 20 | 16 | 16 | Crimp | Olive Drab | For Male Pins | |||||||||||
Amphenol Industrial Operations | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | Environment Resistant | 39 | Metal | Bayonet Lock | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Flange | Neoprene | 20 | 39 | Crimp | Copper Alloy | Aluminum | MIL-DTL-26482 Series I | Gold | Receptacle Female Sockets | Z | Olive Drab | Military | Unshielded | |||||||||||
Amphenol Industrial Operations | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | Environment Resistant | 41 | Metal | Bayonet Lock | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Flange | Neoprene | 20 | 41 | Crimp | Copper Alloy | Aluminum | MIL-DTL-26482 Series I | Gold | Receptacle Female Sockets | N | Olive Drab | Military | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 103.14 | |
| 10 | $ 94.65 | |||
| 25 | $ 91.01 | |||
| 50 | $ 87.97 | |||
| 100 | $ 83.12 | |||
Description
General part information
MS3122E20 Series
16 Position Circular Connector Receptacle, Female Sockets Crimp
