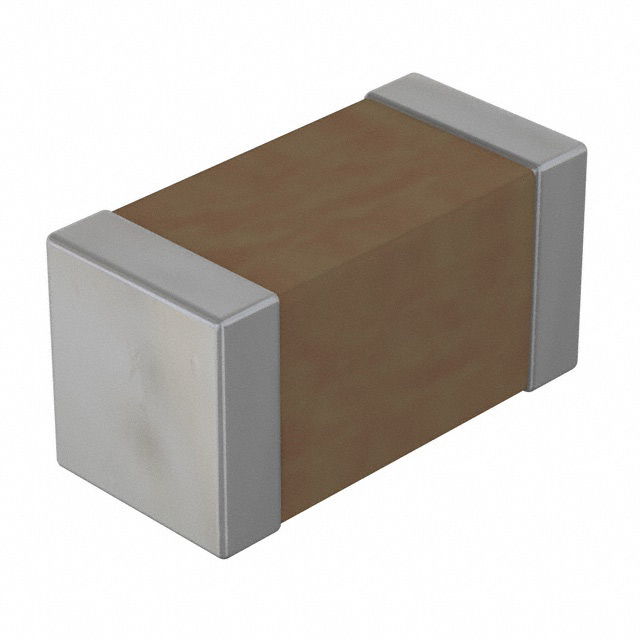

1206D472J250KHT

Active

Knowles Johanson Manufacturing

CAP CER 4700PF 25V C0G/NP0 1206

Deep-Dive with AI

Search across all available documentation for this part.

1206D472J250KHT

Active

Knowles Johanson Manufacturing

CAP CER 4700PF 25V C0G/NP0 1206

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1206D472J250KHT

Applications	General Purpose
Capacitance	4700 pF
Features	High Temperature
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.125 in
Size / Dimension [x]	3.18 mm
Size / Dimension [y]	0.06 "
Size / Dimension [y]	1.52 mm
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.064 in
Thickness (Max) [Max]	1.63 mm
Tolerance	5 %
Voltage - Rated	25 VDC

1206D Series

Part	Tolerance	Temperature Coefficient	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Capacitance	Voltage - Rated
Knowles Johanson Manufacturing 1206D271J251KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	250 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	270 pF
Knowles Johanson Manufacturing 1206D180J202KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	2000 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	18 pF	2 kV
Knowles Johanson Manufacturing 1206D821J101KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	100 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	820 pF
Knowles Johanson Manufacturing 1206D392J250KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	25 VDC	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	3900 pF
Knowles Johanson Manufacturing 1206D122J500KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	50 VDC	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	1200 pF
Knowles Johanson Manufacturing 1206D101J501KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	500 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	100 pF
Knowles Johanson Manufacturing 1206D180J102KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	1000 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	18 pF	1 kV
Knowles Johanson Manufacturing 1206D391J251KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	250 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	390 pF
Knowles Johanson Manufacturing 1206D221J251KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	250 V	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	220 pF
Knowles Johanson Manufacturing 1206D472J250KHT	5 %	C0G NP0	1206 (3216 Metric)	0.064 in	1.63 mm	25 VDC	High Temperature	-55 °C	200 °C	General Purpose	0.125 in	0.06 "	3.18 mm	1.52 mm	MLCC Surface Mount	4700 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.83
	Digi-Reel®	1	$ 5.83
	Tape & Reel (TR)	2500	$ 2.97

Description

General part information

1206D Series

4700 pF ±5% 25V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)

Documents

Technical documentation and resources

No documents available
