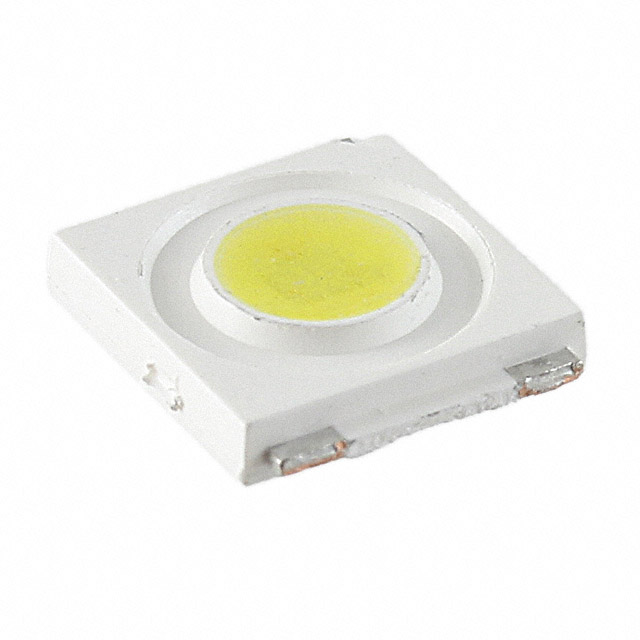

VLMW712U2U3XV-GS08

Obsolete

Vishay General Semiconductor - Diodes Division

LED LITTLE STAR COOL WHITE 4SMD

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED LITTLE STAR COOL WHITE 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VLMW712U2U3XV-GS08

Color	Cool, White
Current - Max [Max]	350 mA
Current - Test	350 mA
Flux @ 25°C, Current - Test	101 lm
Flux @ 25°C, Current - Test [Max]	114 lm
Flux @ 25°C, Current - Test [Min]	87 lm
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lumens/Watt @ Current - Test	82 lm/W
Mounting Type	Surface Mount
Package / Case	2424 (6060 Metric)
Size / Dimension [x]	0.236 in
Size / Dimension [x]	6 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.5 V

Part	Lumens/Watt @ Current - Test	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Current - Test	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Color	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [diameter]	Mounting Type
Vishay General Semiconductor - Diodes Division VLMW712U2U3XV-GS08	82 lm/W	120 °	1.5 mm	0.059 "	SMD	350 mA	350 mA	0.236 in	6 mm	0.236 in	6 mm	2424 (6060 Metric)	Cool White	87 lm	101 lm	114 lm	3.5 V	10 °C/W	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Little Star® White, Cool 3.5V 350mA 120° 2424 (6060 Metric)

Technical documentation and resources

No documents available
