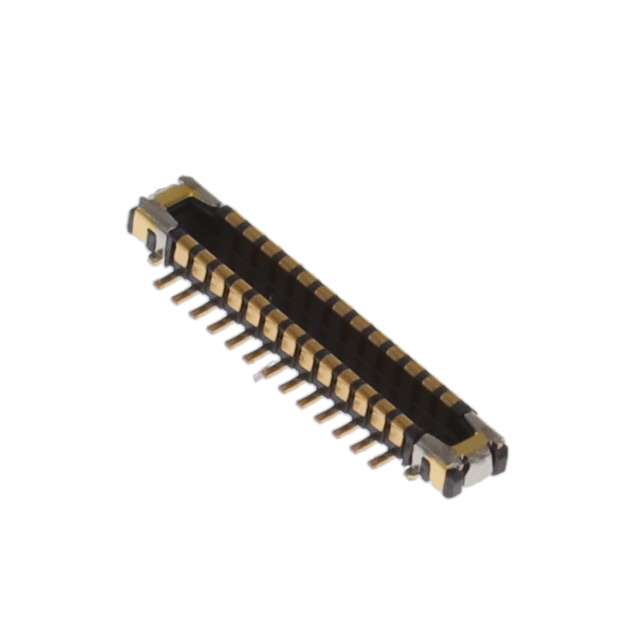

WP56DK-P026VA1-R15000
ActiveJAE Electronics
CONN PLUG 26 POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP56DK-P026VA1-R15000
ActiveJAE Electronics
CONN PLUG 26 POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP56DK-P026VA1-R15000 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.48 mm |
| Height Above Board [z] | 0.019 " |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
