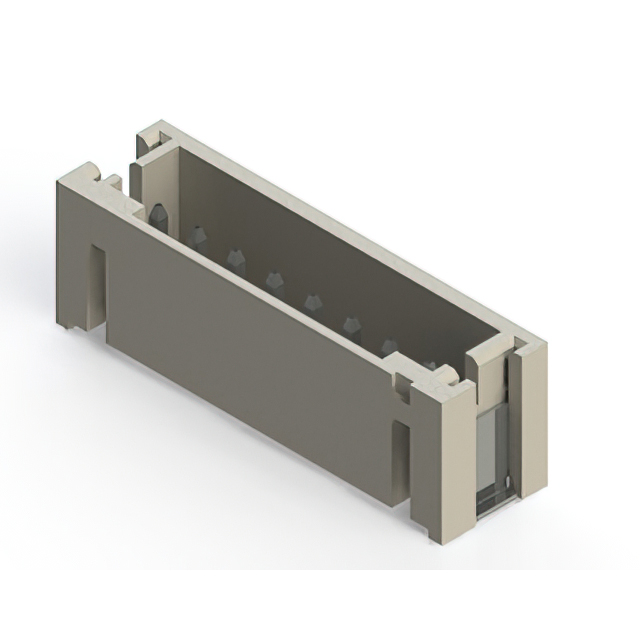

140-508-417-011

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 8 SUR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	140-508-417-011

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

140-508 Series

Part	Note	Mounting Type	Features	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Color	Connector Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Style	Voltage Rating	Shrouding	Contact Finish - Post	Contact Material	Insulation Height [custom]	Insulation Height [custom]
EDAC Inc. 140-508-210-011	Contacts Not Included	Free Hanging (In-Line)	Polarizing Key	Detent Lock	8	-25 °C	85 °C	Female Socket	Crimp	1	0.079 in	2 mm	Natural	Receptacle	Polyamide (PA66) Nylon 6/6
EDAC Inc. 140-508-415-100		Through Hole Right Angle		Detent Lock	8	-40 °C	105 ░C	Male Pin		1				Header	Polyamide (PA66) Nylon 6/6	0.134 in	3.4 mm	0.079 in	2 mm	Square	All	2 A	Natural	0.185 in	4.7 mm	Solder	UL94 V-0	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Tin	Brass
EDAC Inc. 140-508-417-011		Surface Mount	Solder Retention	Detent Lock	8	-40 °C	105 ░C	Male Pin		1				Header	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	Square	All	2 A	Natural			Solder	UL94 V-0	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Tin	Brass	5.51 mm	0.217 in
EDAC Inc. 140-508-415-001		Through Hole		Detent Lock	8	-40 °C	105 ░C	Male Pin		1				Header	Polyamide (PA66) Nylon 6/6			0.079 in	2 mm	Square	All	2 A	Natural	0.24 in	6.1 mm	Kinked Pin Solder	UL94 V-0	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Tin	Brass
EDAC Inc. 140-508-415-000		Through Hole Right Angle		Detent Lock	8	-40 °C	105 ░C	Male Pin		1				Header	Polyamide (PA66) Nylon 6/6			0.079 in	2 mm	Square	All	2 A	Natural	0.197 in	5 mm	Kinked Pin Solder	UL94 V-0	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Tin	Brass
