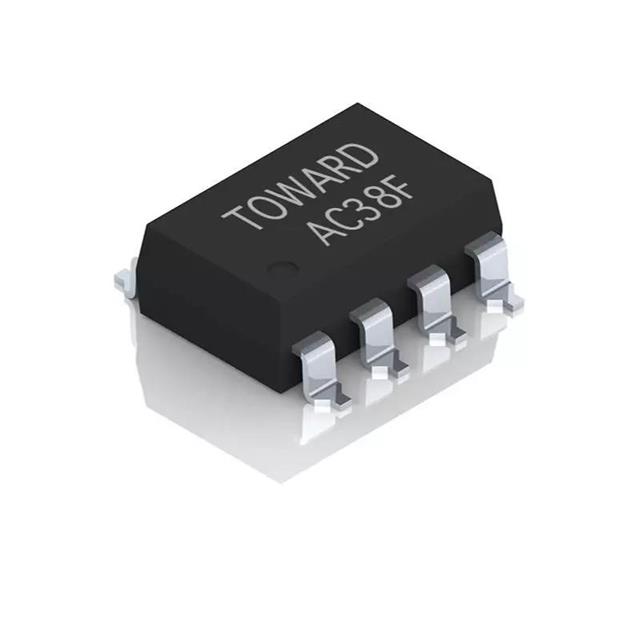

AC38F-R1
ActiveBright Toward Industrial Co., Ltd.
SMD-8, 600V / 80MA, SSR RELAY SP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC38F-R1
ActiveBright Toward Industrial Co., Ltd.
SMD-8, 600V / 80MA, SSR RELAY SP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC38F-R1 |
|---|---|
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 70 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 60 Ohm |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 8-SMD |
| Supplier Device Package | 8-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.95 | |
| 10 | $ 3.45 | |||
| 25 | $ 3.27 | |||
| 50 | $ 3.14 | |||
| 100 | $ 3.02 | |||
| 250 | $ 2.86 | |||
| 500 | $ 2.75 | |||
| Digi-Reel® | 1 | $ 3.95 | ||
| 10 | $ 3.45 | |||
| 25 | $ 3.27 | |||
| 50 | $ 3.14 | |||
| 100 | $ 3.02 | |||
| 250 | $ 2.86 | |||
| 500 | $ 2.75 | |||
| Tape & Reel (TR) | 1000 | $ 2.64 | ||
| 2000 | $ 2.53 | |||
| 3000 | $ 2.47 | |||
Description
General part information
AC38F Series
Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
