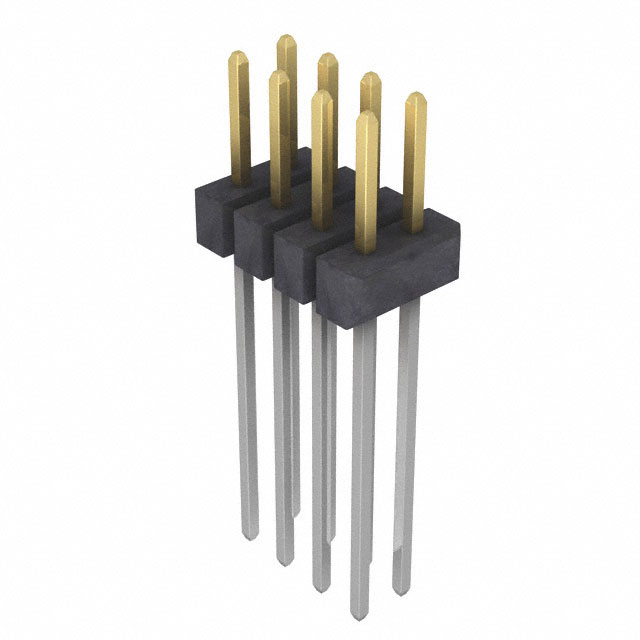

PZC04DAFN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSquare Post Header Datasheet

PZC04DAFN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsSquare Post Header Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC04DAFN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC04 Series

Part	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Post	Connector Type	Shrouding	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Material	Style	Contact Shape	Contact Type	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PZC04SFDN	0.1 in	2.54 mm	10.67 mm	0.42 in	All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	1	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	4	Tin	Header	Unshrouded	Black	0.318 "	8.08 mm	21.29 mm	0.838 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin
Sullins Connector Solutions PZC04DAEN	0.1 in	2.54 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	2	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	8	Tin	Header	Unshrouded	Black	0.23 in		21.59 mm	0.85 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm	13.21 mm	0.52 "	2.54 mm	0.1 in
Sullins Connector Solutions PZC04SFBN	0.1 in	2.54 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	1	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	4	Tin	Header	Unshrouded	Black	0.318 "	8.08 mm	16.21 mm	0.638 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin		5.58 mm	0.22 in
Sullins Connector Solutions PZC04SGBN	0.14 in	3.56 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole Right Angle	Gold	3 A	1	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	4	Tin	Header	Unshrouded	Black	0.318 "	8.08 mm			UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin		5.58 mm	0.22 in
Sullins Connector Solutions PZC04DAFN	0.1 in	2.54 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	2	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	8	Tin	Header	Unshrouded	Black	0.23 in		24.13 mm	0.95 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm	15.75 mm	0.62 in	2.54 mm	0.1 in
Sullins Connector Solutions PZC04DBDN	0.24 in	6.1 mm	10.67 mm	0.42 in	All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole Right Angle	Gold	3 A	2	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	8	Tin	Header	Unshrouded	Black	0.23 in				UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm			2.54 mm	0.1 in
Sullins Connector Solutions PZC04SAHN	0.1 in	2.54 mm	20.83 mm	0.82 in	All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	1	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	4	Tin	Header	Unshrouded	Black	0.23 in		29.21 mm	1.15 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm
Sullins Connector Solutions PZC04DAHN	0.1 in	2.54 mm	20.83 mm	0.82 in	All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	2	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	8	Tin	Header	Unshrouded	Black	0.23 in		29.21 mm	1.15 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm			2.54 mm	0.1 in
Sullins Connector Solutions PZC04DABN	0.1 in	2.54 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	2	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	8	Tin	Header	Unshrouded	Black	0.23 in		14.22 mm	0.56 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin	5.84 mm	5.84 mm	0.23 in	2.54 mm	0.1 in
Sullins Connector Solutions PZC04SFEN	0.1 in	2.54 mm			All	Copper Alloy	0.1 in	2.54 mm	Solder	Through Hole	Gold	3 A	1	Push-Pull	10 çin	0.25 çm	2.54 µm	100 µin	4	Tin	Header	Unshrouded	Black	0.318 "	8.08 mm	23.83 mm	0.938 in	UL94 V-0	Polyester Thermoplastic	Board to Board Cable	Square	Male Pin		13.21 mm	0.52 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PZC04 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Square Post Header

Datasheet
