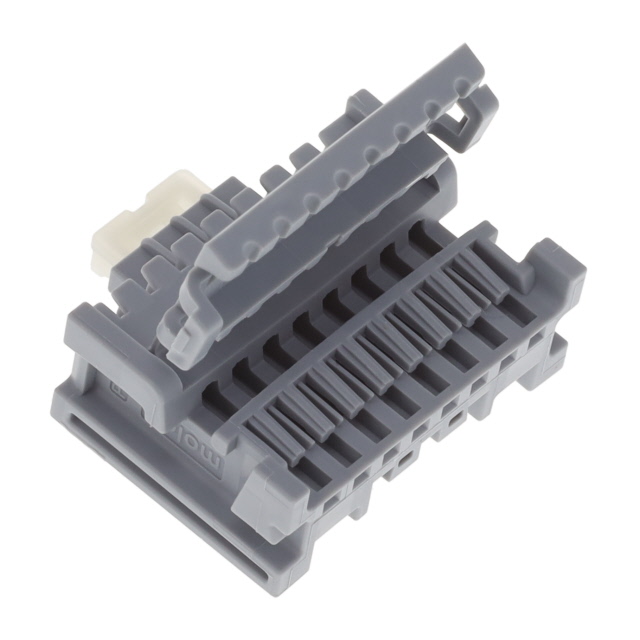

0347915181

Active

Molex

CONN HOUSING RCP 8 POS 2MM CRIMP ST CABLE MOUNT GRAY BAG

Deep-Dive with AI

Search across all available documentation for this part.

Documents3479(1-3) Series Spec Datasheet

0347915181

Active

Molex

CONN HOUSING RCP 8 POS 2MM CRIMP ST CABLE MOUNT GRAY BAG

Deep-Dive with AI

Documents3479(1-3) Series Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0347915181

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

034791 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Color	Insulation Material	Features	Number of Rows	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Note	Connector Type	Fastening Type
Molex 0347915182	8	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)	Connector Position Assurance (CPA)	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347910141	4	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)		1	Female Socket	Crimp	-40 °C	105 ░C		Receptacle	Latch Holder
Molex 0347915143	4	0.079 in	2 mm	Free Hanging (In-Line)	Green	Polybutylene Terephthalate (PBT)	Connector Position Assurance (CPA)	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347910023	2	0.079 in	2 mm	Free Hanging (In-Line)	Green	Polybutylene Terephthalate (PBT) Glass Filled	Waterproof	1	Female Socket	Crimp	-40 °C	105 ░C		Receptacle	Latch Holder
Molex 0347910140	4	0.079 in	2 mm	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)	Bridged	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347910182	8	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)		1	Female Socket	Crimp	-40 °C	105 ░C		Receptacle	Latch Lock
Molex 0347915181	8	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)	Connector Position Assurance (CPA)	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347915141	4	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)	Connector Position Assurance (CPA)	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347915142	4	0.079 in	2 mm	Free Hanging (In-Line)	Gray	Polybutylene Terephthalate (PBT)	Connector Position Assurance (CPA)	1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder
Molex 0347910080	8	0.079 in	2 mm	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)		1	Female Socket	Crimp	-40 °C	105 ░C	Contacts Not Included	Receptacle	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		10	$ 0.54
		100	$ 0.45
		1000	$ 0.40

Description

General part information

034791 Series

8 Rectangular Connectors - Housings Receptacle Gray 0.079" (2.00mm)

Documents

Technical documentation and resources

3479(1-3) Series Spec

Datasheet
