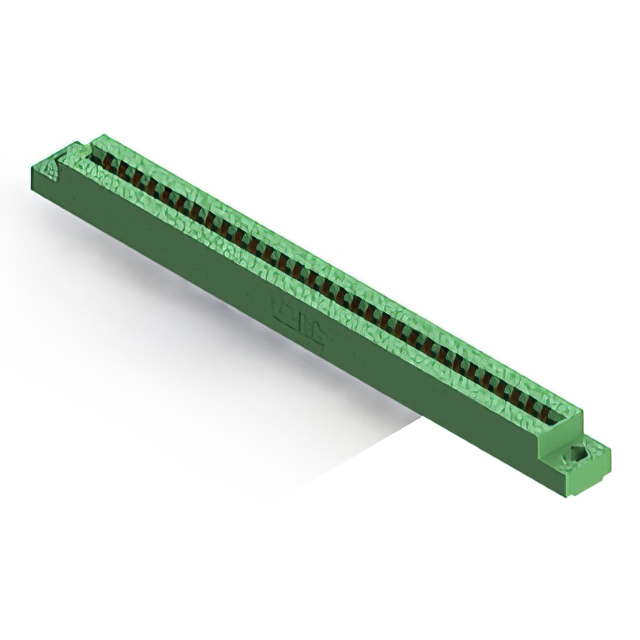

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-031-520-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-031-520-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-031 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Read Out | Pitch [x] | Pitch [x] | Flange Feature | Number of Positions | Material - Insulation | Number of Rows | Color | Card Type | Mounting Type | Contact Finish | Termination | Gender | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | |||||
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Side Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Side Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 3.25 mm | 0.128 " | |||
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Gold | Solder Eyelet(s) | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Solder | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Cantilever | Dual | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 62 | Polyester Thermoplastic | 2 | Green | Non Specified - Dual Edge | Tin | Solder Eyelet(s) | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 31 | 1 | 3.96 mm | 0.156 in |
